48v 5amp Charger

  • Sale
  • Regular price $85.00


Features
* For 13S cell li-ion battery pack and nominal voltage 48V

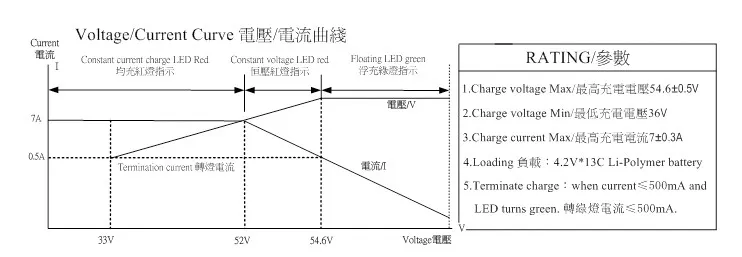

* Constant charging current /Voltage
* Terminate the charge once battery is full
* LED indicate the charge status
* Safety standard approvals: UL, CUL, GS, CE, BS, RCM, PSE, CB, FCC,EMC, C-tick
Specifications
Vin
Safety Approvals Input Voltage Range
100~240Vac
Operate Voltage Range
90~264Vac
Fin
Input Frequency
50~60Hz
Po
Output Power
385W
Vo
Output Voltage
54.5VDC +/-0.5
Io
Output Current
5A+/-5%
IiI
Input Current Low Line
Io=Full load, Vin=100VAC
2.5A
Iih
Input Current High Line
Io=Full load, Vin=240VAC
1.2A
Ir
Inrush Current Low Line
Io=Full load, 25℃ ,Cool start,Vin=115Vac
30A
Inrush Current High Line
Io=Full load, 25℃ ,Cool start,Vin=230Vac
40A
Eff
Efficiency
Io=Full load,Vin=230Vac
88%
REG-i
Line Regulation
Io=Full load
0.5~2%
REG-o
Load Regulation
Vin=230Vac
4~5%
OCP
Over Current Protection
Auto recovery
120~150%
Ttr
Time of Transient Response
Io=Full load to Hakf Load, Vin=100Vac
4mS Max.
Th
Hold-up Time
Io=Full load, Vin=110Vac
10mS Min.
Ts
Start Up Time
Io=Full load, Vin=100Vac
3S Max.
Vp-p
Ripple & Noise Peak to Peak
Io=Full load, Vin=90Vac
1% Max.
Ilk
Safety Ground Leakage Current
Vin=240Vac/60Hz
0.75A Max.
TC
Temperature Coefficinet
All output
+/-0.04%/℃
Pno
No-Load Power Consumption
No load, Vin=230Vac
0.21W
Vps
Dielectric Withstanding Voltage
Primary to secondary
3750Vac Min./3S
