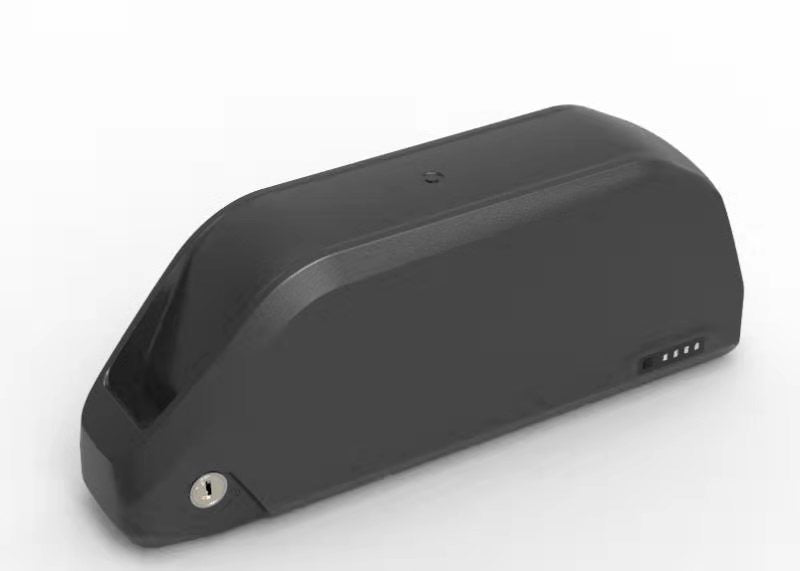

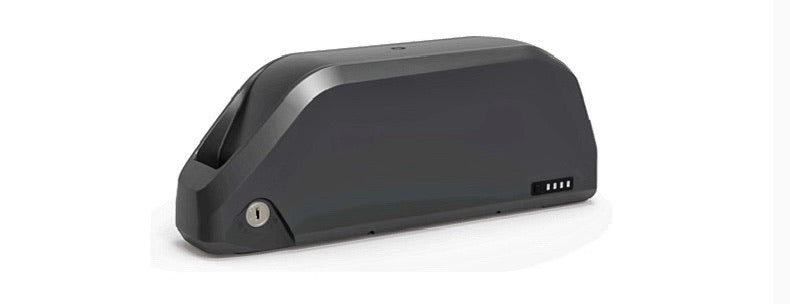

EMP Shark 3 | Lithium Ion Battery

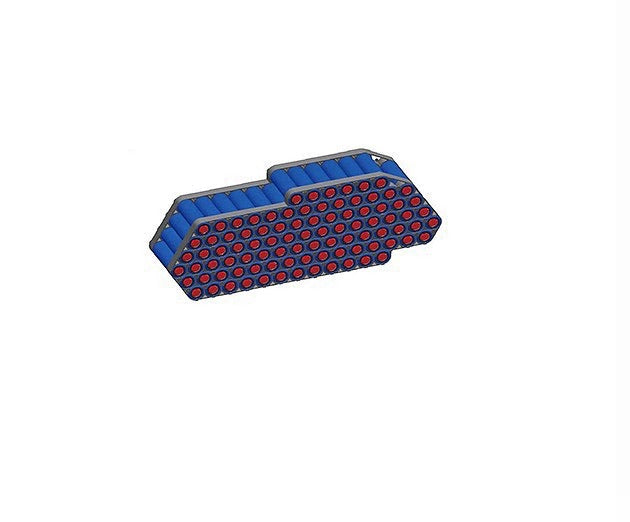

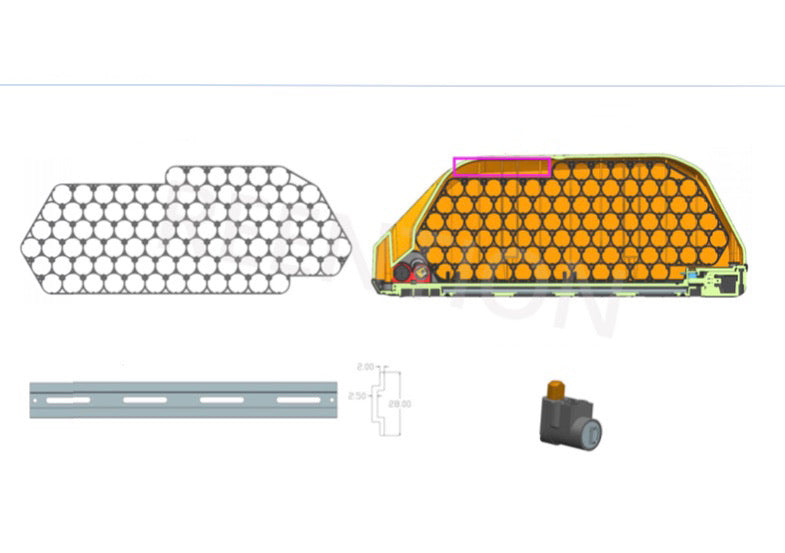

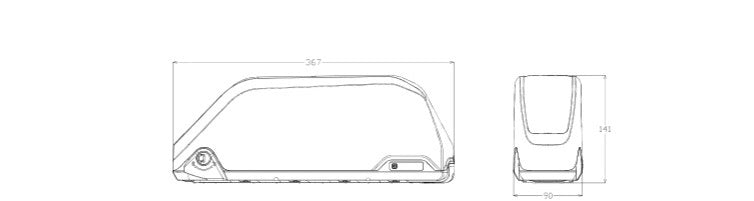

36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
---|---|---|---|---|---|---|
10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
EMP Shark Series E-Bike Battery Packs
Premium USA-Built Power for Every Ride
Our EMP Shark Series batteries are designed for riders who demand the best. Each pack is custom-built in the USA using Grade-A certified cells from top manufacturers (Samsung, LG, Panasonic, or Molicel) and housed in our upgraded Shark 3 case — an extra-tall, high-strength version inspired by the Hailong G80, but reinforced for superior stability and longevity.
Whether you ride for work, recreation, or endurance, this battery line delivers reliable performance, long range, and compatibility with dozens of e-bike systems.
Key Features
- Made in the USA – Assembled and tested in our Las Vegas facility for unmatched quality control.
- Name-Brand Cells Only – Choose between Samsung 35E, LG MJ1, or Molicel P42A cells (depending on voltage and capacity).
- Custom Power Options – Available in 24 V – 72 V and 6 Ah – 45.5 Ah configurations to fit nearly any build.

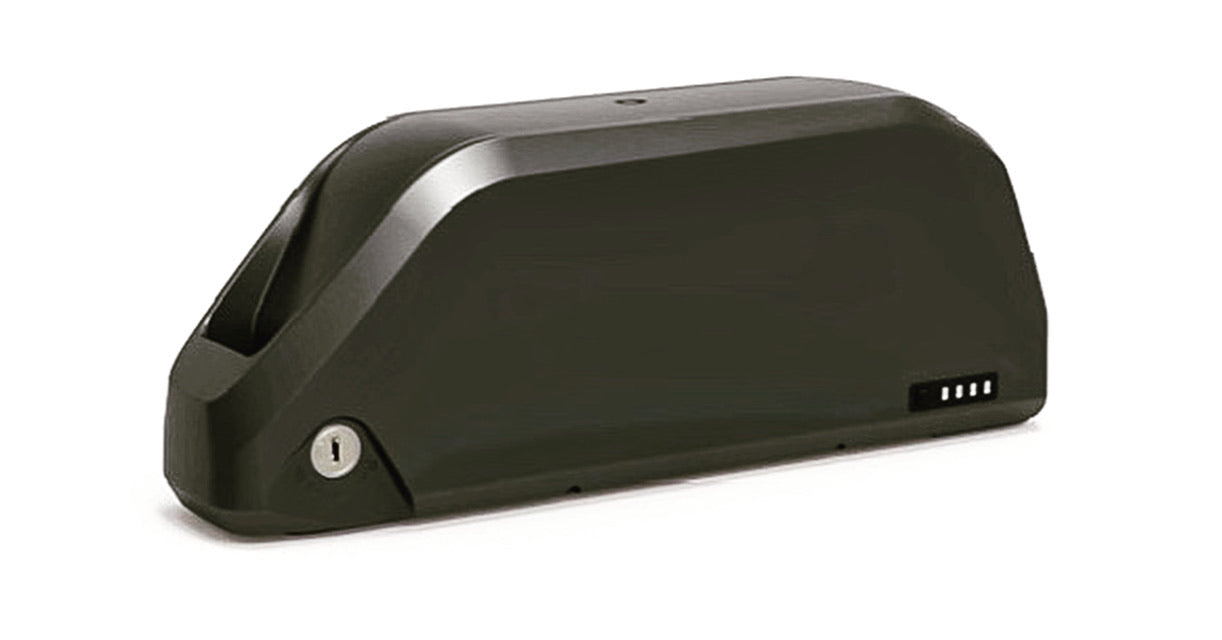

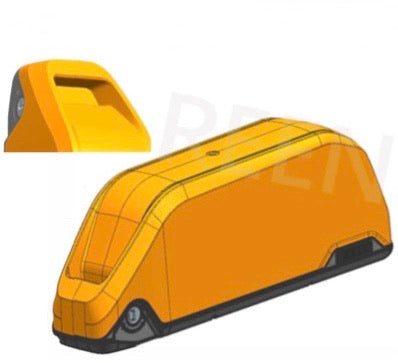

- Upgraded Case Design – Reinforced Shark 3 housing with secure 5-pin mount; locks directly to your bike frame and removes in seconds.
- Smart BMS Options – Continuous discharge ratings from 15 A – 80 A for motors up to 2 kW +.
- Plug-and-Play Fit – Mounts using your stock water-bottle bolt holes.
- Warranty & Support – 1-Year manufacturer warranty plus U.S.-based technical assistance.
Technical Specifications
Parameter | Details |
---|---|
Voltage Range | 24 V – 72 V (10S – 20S) |
Capacity Range | 6 Ah – 45.5 Ah |
Cell Type | Samsung 35E / LG MJ1 / Molicel P42A (Grade A) |
Configuration | Custom (e.g. 10S5P, 13S4P, 20S4P) |
BMS Rating | 15 A – 80 A continuous |
Connector | XT60 / XT90 / Anderson (selectable) |
Charge Port | DC 2.1 or 3-pin aviation |
Case Style | Shark 2 / Shark 3 (upgraded G80-type) |

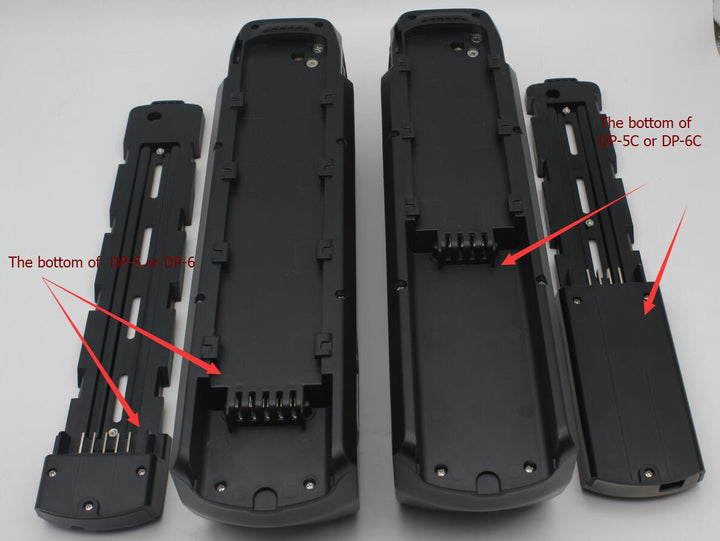

Mount Type | 5-Pin rail bracket – includes mounting hardware |
Weight | 6.5 – 9 lb (varies by build) |
Charger | 2A – 5A smart charger included |
Warranty | 12 months standard |
Why Riders Choose EMP
- Built, tested, and supported in the USA – no long waits or overseas returns.
- Custom-tuned BMS for your controller amperage.
- Real-capacity cells only – never rewrapped or recycled.
- Fast, legal ground shipping anywhere in the continental U.S.
- Professional rebuild and service center located in Las Vegas.
Shipping & Lead Time
- Standard lead time: 7 – 10 business days for in-stock variants.
- Custom builds: Up to 3 weeks (we always quote worst-case to ensure early delivery).
- Shipping: Ground only – DOT-compliant lithium transport from Las Vegas, NV.
- Free shipping on orders over $499 (U.S. continental only).
Need Something Custom?
We can configure any voltage or capacity combination not listed. Just click “Request a Custom Battery” or contact us with your motor and controller specs — our engineers will match the ideal pack for your setup.
Processing Time
- Most in-stock batteries ship within 3–5 business days.
- Custom rebuilds and special orders may take 7–14 business days before shipping.
Shipping Method
- All batteries are shipped via ground service only (FedEx or UPS) in compliance with DOT and IATA regulations for lithium batteries.
- Expedited air shipping is not available for lithium battery products.
Delivery Time
- Ground shipping typically takes 3–7 business days within the U.S.
- Tracking information will be provided as soon as your order ships.
Local Pickup
- Pickup is available at our Las Vegas facility:
6585 S Arville St, Las Vegas, NV 89118
Monday–Friday, 9:00 AM – 5:00 PM (by appointment).
Returns
- Returns are accepted within 14 days of delivery on unused, unopened batteries.
- For rebuilds and custom packs, all sales are final unless defective.
Important Notes
- Shipping is limited to the continental United States.
- Customers are responsible for providing a valid shipping address — carriers cannot deliver to P.O. Boxes.
- Signature may be required at delivery for higher-value battery orders.
