Easy Motion Battery | Rebuild Service
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
Easy Motion E-Bike Battery Rebuild Service
Restore Your Easy Motion Battery to Its Full Potential
Don’t let a worn-out battery limit your rides. Our Easy Motion battery rebuild service is designed to breathe new life into your battery by replacing its internal components with high-quality cells. This cost-effective and eco-friendly service ensures your e-bike delivers the performance and range you depend on.
** NOTE: Easy Motion Battery Model FB-50-488V DC 12.6Ah 605Wh (Model Code:UV428) is a 20700-Cell Based Battery Pack and is not generally serviced. It can be done at special request, but has added cost and wait time due to special cell requirements.
Key Features of Our Rebuild Service:
- Revitalized Performance: Restores your battery’s capacity for consistent and reliable power.
- Budget-Friendly Option: Avoid the expense of a full battery replacement.
- Environmentally Conscious: Reduce waste by reusing your existing battery housing.
- Expert Technicians: Our specialists are skilled in rebuilding Easy Motion batteries with precision and care.
- Extended Lifespan: Upgraded internal components ensure lasting performance.

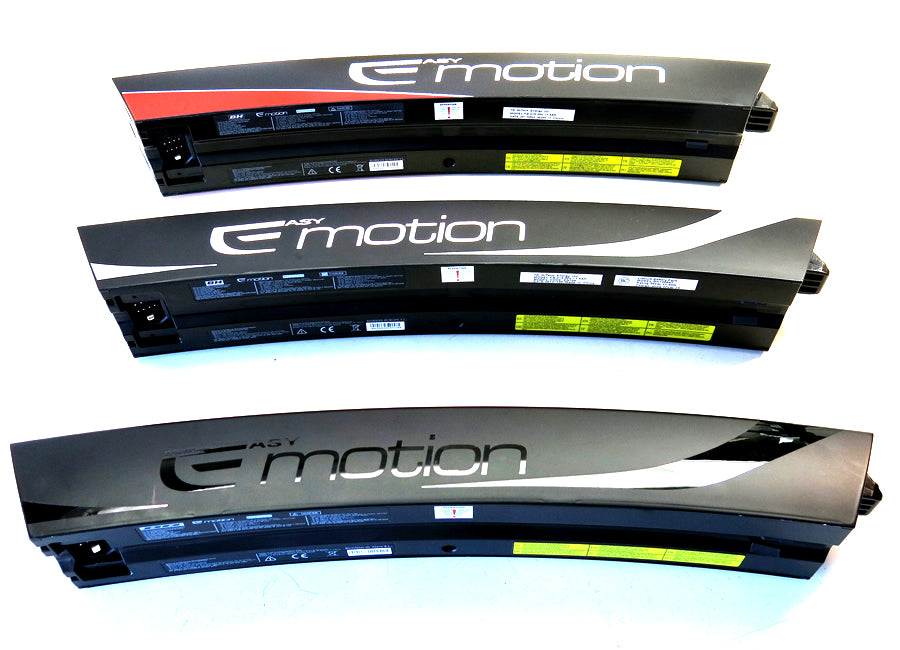

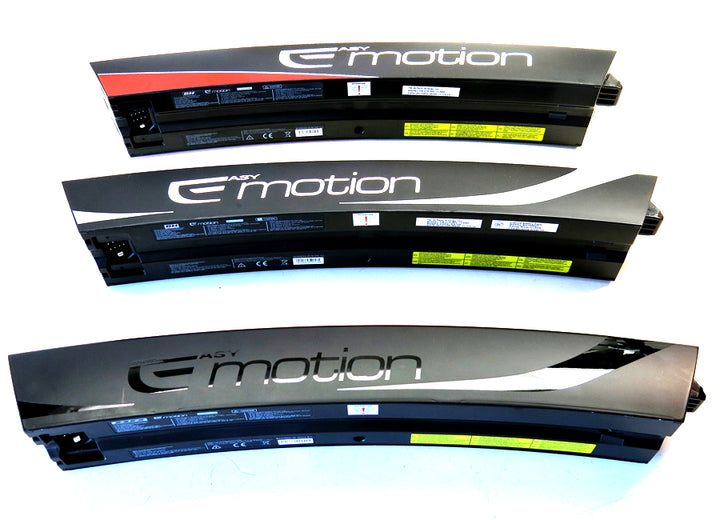

Easy Motion Neo battery with a capacity of 36 Volt, 12 Ah designed specifically to fit the 2012-2014 BH Easy Motion Neo electric bikes.

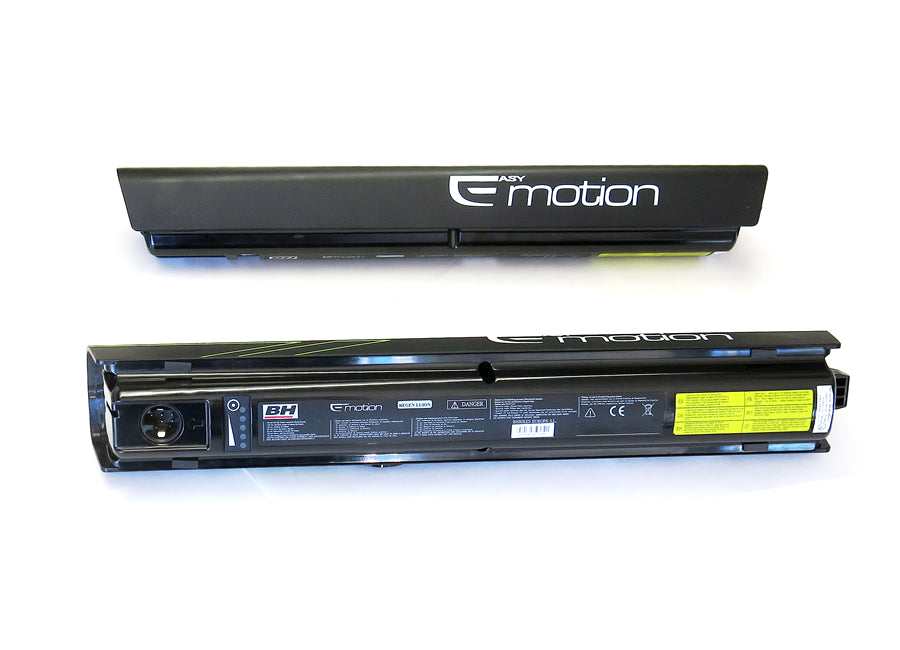

We can also service and rebuild batteries for newer models such as the Easy Motion Evo, Atom, and Rebel.
Why Choose Our Rebuild Service?
Your Easy Motion e-bike deserves a battery that keeps up with your lifestyle. Whether you use it for daily commutes or scenic rides, our rebuild service is the perfect solution to keep your e-bike powered and ready to go.
We DO NOT rebuild certain models, such as Lynx or EVO City Wave. Contact us to inquire regarding your model if it is not listed!
These are battery rebuilds only, the bike is not included in our battery refill service. Simply just mail in any equipment that came with your battery as well as the charger from there we will test the battery to see its current condition but the charger is needed in the testing process. After we receive it, we will send you a 100% tested Refilled Higher Capacity Battery Pack to you.
Every battery comes with a 1 Year Warranty !!!
***Always remember to include your charger when shipping your battery and make sure you fill out the battery intake form.
Battery Specs
- 36 volt battery
- 12Ah system (upgrade available to 14Ah)
- 350 cycles
- 1 year warranty
Please select Hazmat shipping upon checkout. Failure to do so may result in an additional invoice being sent to you.
(Bike Models)
- Neo Xtrem
- Neo Cross
- Neo Volt
- Neo Carbon
- Neo Jumper
- Evo Cross
- Evo City
- Evo City Wave
- Evo Eco Lite
- Evo Street
- Evo Jet
- Evo 27.5
- Evo 29er
- Evo Big Bud
- Evo Snow
- Evo Jumper
- Evo Lite
- Evo Nitro
- Atom Lynx

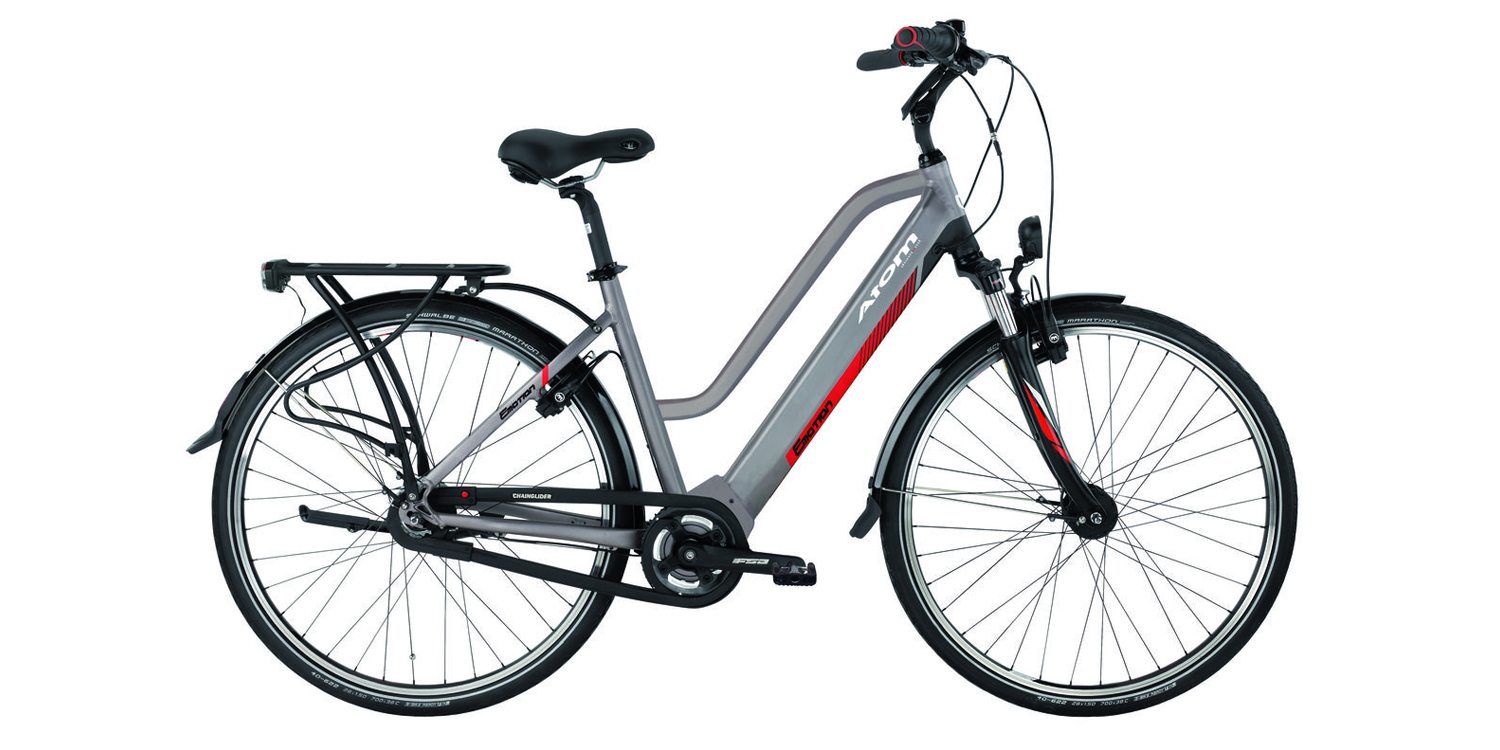

- Atom Diamond Wave
- Atom Cross Pro
- Atom X Lynx
- Atom X Carbon Lynx
- Rebel Lynx
- Rebel Cross Lite
- Rebel Gravel-X
- Rebel Lite
- Rebel Snow
- Rebel Jet
Processing Time
- Most in-stock batteries ship within 3–5 business days.
- Custom rebuilds and special orders may take 7–14 business days before shipping.
Shipping Method
- All batteries are shipped via ground service only (FedEx or UPS) in compliance with DOT and IATA regulations for lithium batteries.
- Expedited air shipping is not available for lithium battery products.
Delivery Time
- Ground shipping typically takes 3–7 business days within the U.S.
- Tracking information will be provided as soon as your order ships.
Local Pickup
- Pickup is available at our Las Vegas facility:
6585 S Arville St, Las Vegas, NV 89118
Monday–Friday, 9:00 AM – 5:00 PM (by appointment).
Returns
- Returns are accepted within 14 days of delivery on unused, unopened batteries.
- For rebuilds and custom packs, all sales are final unless defective.
Important Notes
- Shipping is limited to the continental United States.
- Customers are responsible for providing a valid shipping address — carriers cannot deliver to P.O. Boxes.
- Signature may be required at delivery for higher-value battery orders.
