Handlworks x EMP - Custom Lithium Ion Battery Pack
EMP × HANDLWORKS | 60V PERFORMANCE BATTERY
Built for the controller you already upgraded.
The EMP × Handlworks 60V / 20Ah pack is a purpose-built 16S4P lithium-ion battery for configured Handlworks upgrade systems. Premium Samsung 50S cells, a high-current BMS and a hardwired XT90 discharge path give the controller the battery platform it was designed to use.
Watch the Handlworks upgrade path: see why the battery and controller need to be treated as one complete high-output system.
Why this pack exists
A real power path from cells to controller.
This is not a generic replacement battery with a high-current label added to the listing. The pack is built around the electrical requirements of the verified Handlworks configuration, with the cell group, BMS, discharge cable and connector treated as a complete system.

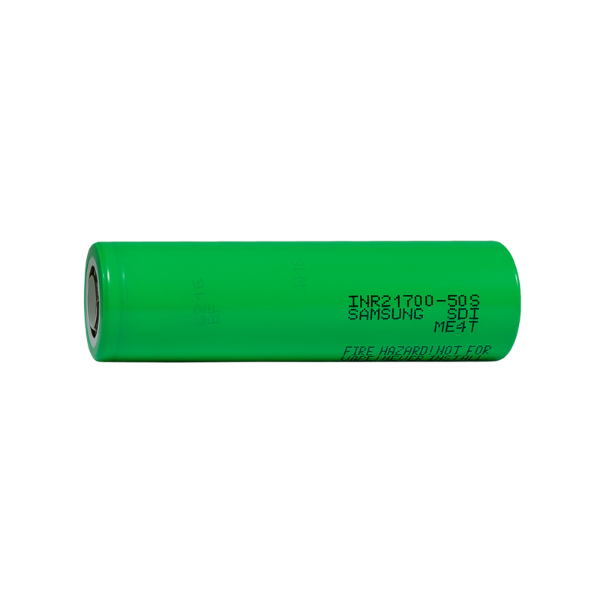

Samsung 50S performance cells
Sixty-four A-grade Samsung INR21700-50S cells are arranged 16S4P to deliver 20Ah capacity and approximately 1,152Wh of nominal energy.
High-current discharge architecture
The discharge path bypasses traditional cradle spring contacts and uses a hardwired pass-through XT90 output for the configured high-output setup.
Built and tested as a system
EMP verifies voltage, charger profile, connector polarity, cable length and mounting requirements before the finished pack is released for the bike.
Technical specification
60V / 20Ah. One configuration. Clearly defined.
The storefront calls this a 60V pack. Electrically, the 16S lithium-ion architecture is approximately 57.6V nominal and reaches 67.2V at full charge.
80A continuous. 100A maximum.
The battery is designed around the verified high-current Handlworks application. Actual controller demand, tune, wiring and vehicle configuration determine how much current the system uses.
The case controls are intentionally bypassed.
On this build, the enclosure power button and charge indicator are intentionally nonfunctional. The performance discharge path is hardwired for the configured installation.
Verified fitment path
Start with the bike. Finish with the exact hardware.
Compatibility applies to properly configured Handlworks upgrade systems, not every stock bike. EMP confirms controller voltage, tune, connector polarity, cable length and mounting space before final configuration.
700 mm XT90 extension
Top- or down-tube mounting on the verified Handlworks configuration.
No extension required
Confirmed for the current configured Handlworks battery installation.
700 mm XT90 extension
Top-tube mounting on the verified Handlworks configuration.
50 mm XT90 + relocation plate
Seat-tube mounting with the required relocation hardware.
Measurement required
Fitment is tight and can vary by frame. Exact model and available mounting space must be verified.
Custom verification
Not universal. Electrical compatibility and physical fitment must be confirmed before ordering.
Configured package
Everything needed for the approved battery setup.
- EMP × Handlworks 60V / 20Ah 16S4P battery
- Samsung INR21700-50S A-grade cells
- 5A voltage-matched lithium-ion charger
- Custom high-current battery cradle / discharge path
- Required XT90 extension or relocation hardware when the verified bike configuration calls for it
- Pre-shipment electrical and fitment review
Important compatibility and safety notice
This is a high-output 60V lithium-ion battery for approved, configured systems. Do not connect it to a stock controller, charger, display, lighting system, wiring harness or accessory that has not been verified for the battery voltage and expected current. High-power modifications can affect component life, vehicle warranty, legal classification and rider safety. Parallel-battery use and regenerative braking require application-specific approval.
EMP × HANDLWORKS | BUILT & TESTED IN LAS VEGAS
The battery platform for the Handlworks 60V upgrade path.
Select the 60V / 20Ah configuration above. EMP verifies the bike, controller, charging profile, connector and mounting hardware before the pack is finalized. Ground shipping only within the continental United States.
🔧 Battery Rebuild Service
We rebuild your existing battery using fresh, high-quality cells to restore or increase capacity and performance.
- Full disassembly, rebuild, and testing
- Upgraded capacity options available
- Uses brand new name-brand cells
- Turnaround time: Approximately 14 business days
- Timeline includes the time it takes for us to receive your battery and complete the rebuild
⚡ Custom Battery Builds
Fully custom battery solutions designed to meet your exact specifications. This is ideal for unique applications or when a standard battery will not fit your needs.
- Custom shapes and sizes
- Custom BMS (Battery Management System) configurations
- Choice of cells and performance levels
- Option for enclosed case or raw (naked) pack
- Built specifically for your application
- Turnaround time: Approximately 21 business days
🔋 Battery Packs (Encased)
Battery packs built using one of our in-stock cases. These are a great option if you want a reliable, ready-to-fit solution.
- Uses pre-designed cases from our inventory
- Proven, reliable configurations
- Faster than fully custom builds
- Turnaround time: Approximately 14 business days
🔬 Battery Cells (Individual Cells)
We supply high-quality lithium-ion cells for repairs, upgrades, and custom builds.
- In-stock cells: Ship within 3–6 business days
- Out-of-stock (air shipping): Approximately 10 business days
- Out-of-stock (sea shipping): Approximately 40 days
📦 Shipping & Intake Process
- Place your order or request a quote
- Fill out our Battery Intake Form
- Send in your battery (include charger and key if required)
- We inspect and test your battery
- We contact you with results and recommended options
Important Information
Turnaround times begin once your battery is received and checked into our system.
During high demand periods or for complex builds, timelines may be slightly extended.
Shipping Method
- All batteries are shipped via ground service only (FedEx or UPS) in compliance with DOT and IATA regulations for lithium batteries.
- Expedited air shipping is not available for lithium battery products.
Delivery Time
- Ground shipping typically takes 3–7 business days within the U.S.
- Tracking information will be provided as soon as your order ships.
Local Pickup
- Pickup is available at our Las Vegas facility:
4856 Judson Ave Suite 155 Las Vegas, NV 89115
Monday– Thursday, 9:00 AM – 4:00 PM ( Friday by appointment).
Returns
- Returns are accepted within 14 days of delivery on unused, unopened batteries.
- For rebuilds and custom packs, all sales are final unless defective.
Important Notes
- Shipping is limited to the continental United States.
- Customers are responsible for providing a valid shipping address — carriers cannot deliver to P.O. Boxes.
- Signature may be required at delivery for higher-value battery orders.
