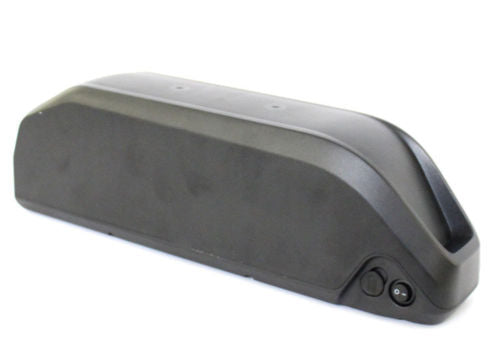

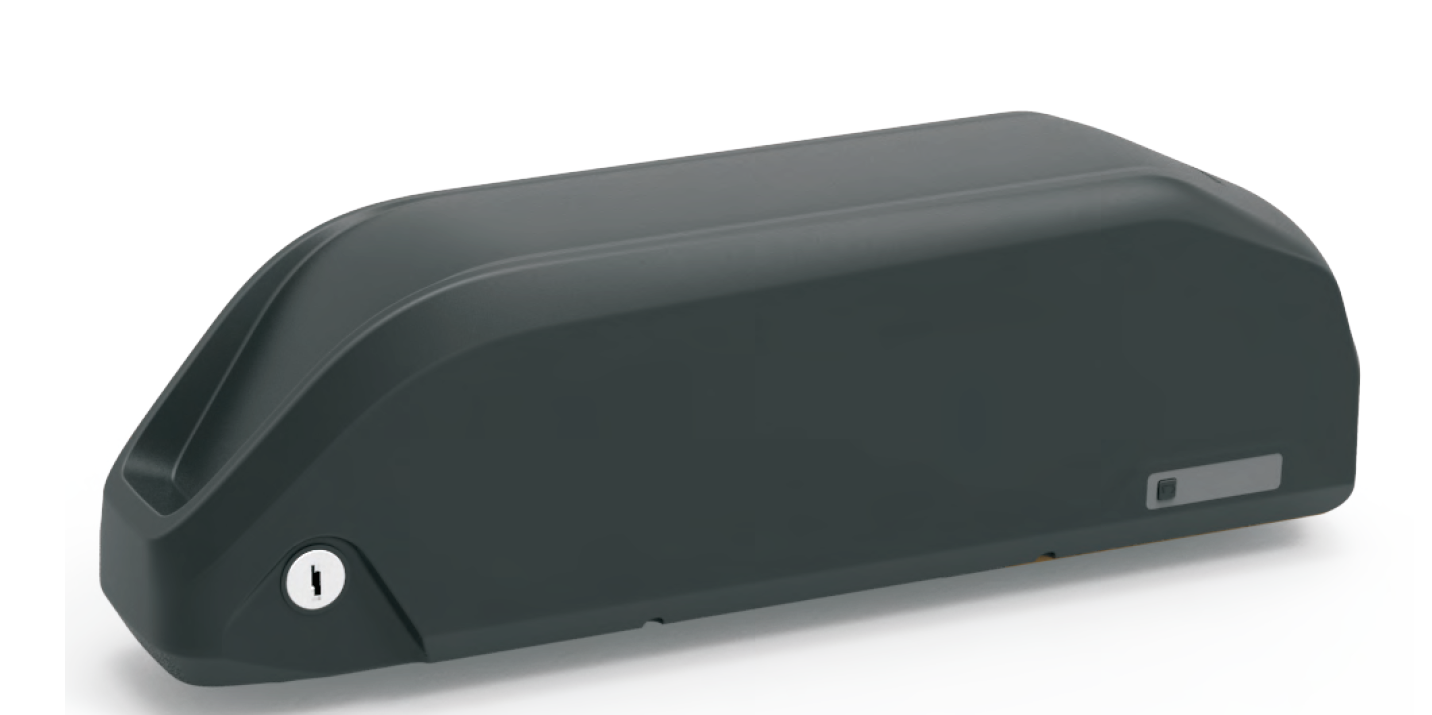

EMP Shark style battery is a perfect NEW ebike battery case that is similar to the Sea Dragon but has a much stronger base! This is for most bikes as it has a slightly slimmer height profile due to its longer shape, though this variation is slightly taller to accommodate a few extra cells. The battery case can lock inside of any frame and can also be removed if you are looking to buy an extra case for more range.

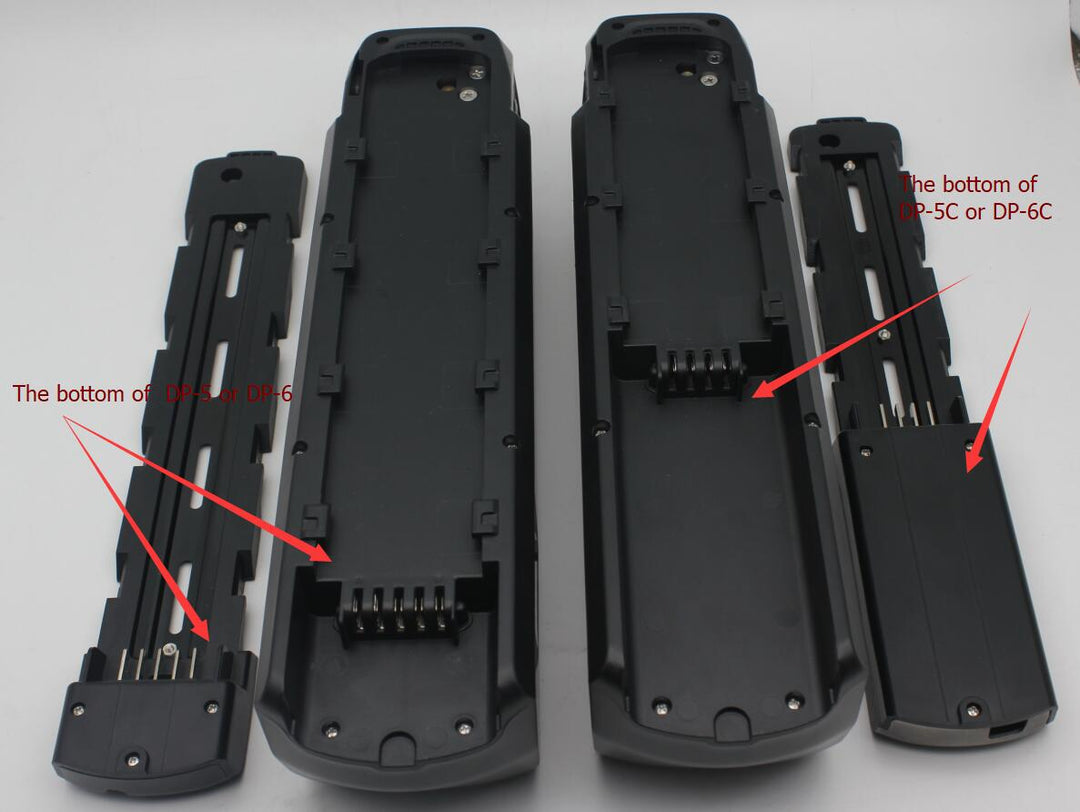

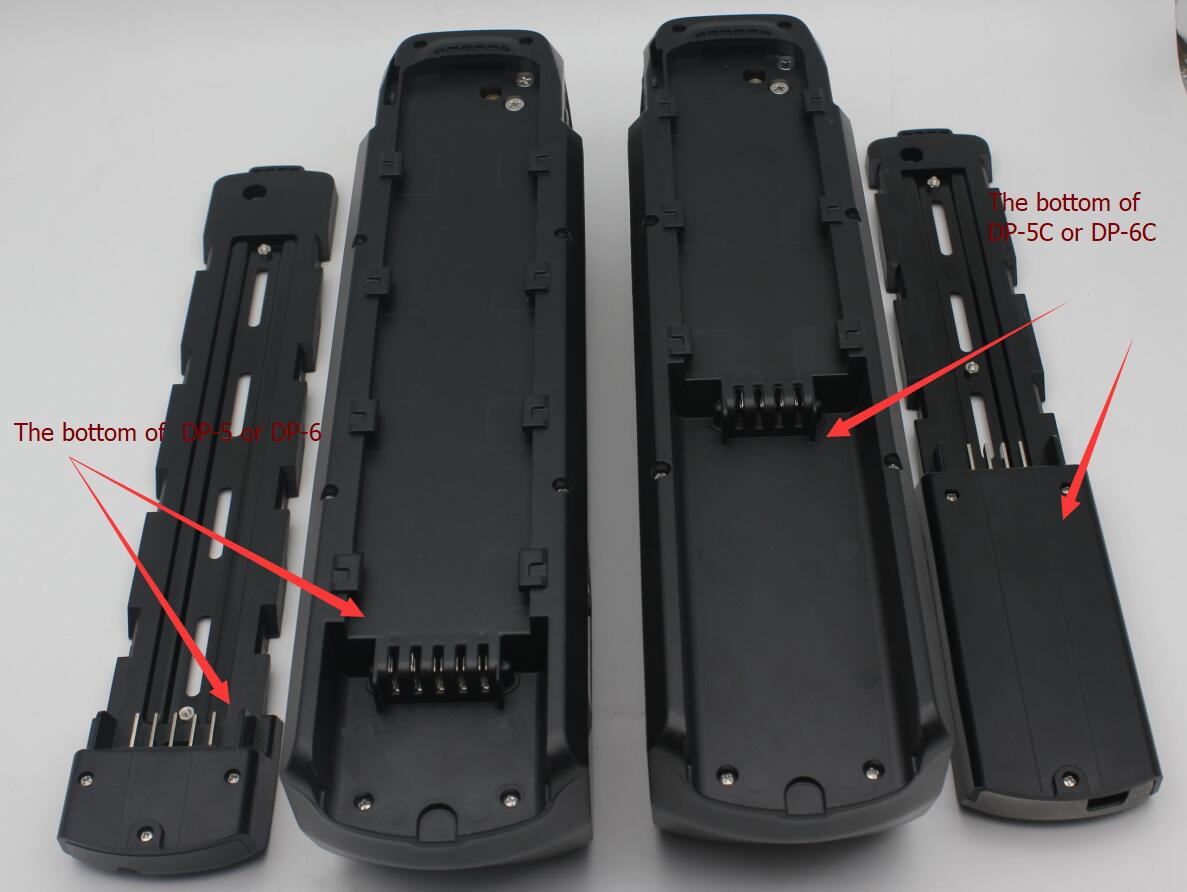

NOTE: The mounting bracket on this variation of case (pictured below as: DP5/DP6) is a 5-pin (instead of 4-pin) and is shorter than the standard "Shark" mounting bracket. Please inquire with us if you are unsure of the correct case/bracket needed to suit your application.
Also, custom voltage/capacity combinations not listed here may be available, please reach out if you need help configuring a battery for your setup.

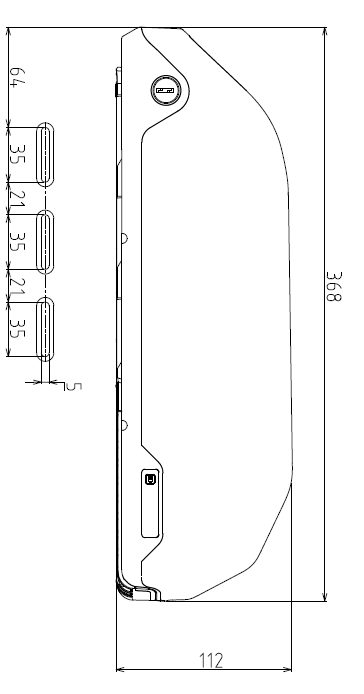

Battery Size is 11 cm x 36.5 cm
Battery Specifications
- 24V | 36V | 48V | 52V Lithium-Ion Battery
- Battery Pack in Water Bottle Mount Case
- 1-year manufacturer warranty
- Specifications: Model: Bottle type
- Battery material: Li-Ion 18650 Cells
- Nominal voltage: 24V | 36V | 48V | 52V
- Rated capacity:(Varies) up to 35Ah
- Charge current limit: 8A
- Charging mode: CC/CV
- Max charge voltage: (24V=29.4V | 36V=42.6V | 48V=54.6V | 52V=58.8V)
- 40 Amp continuous 60 Amp burst discharge
- Cycle life: About 500 cycles
- Range with one charge: 40 - 50 miles (500w motor)
- 5mm Barrel Connector Port
- Anderson 30Amp Powerpole connector is standard for discharge port on mounting bracket (different connectors available upon request)
- Batteries can be configured with either LG MJ1, Sanyo GA, or Samsung 30Q cells; based off customer application/need. (LG MJ1 is standard)
Battery Cell Specs for LG MJ1
- Nominal: 3500 mAh Minimum: 3400 mAh
- Nominal Voltage: Average: 3.635V
- Constant current: 0.5C
- Constant voltage: 4.2V
- End current(Cut off): 50mA
- Max. Charge Voltage: 4.2 ± 0.05V
- Max. Charge Current: 1.0 C
- Standard Discharge Constant current: 0.2C
- Nominal Discharge: 3000 mAh constant current
- End voltage(Cut off): 2.75V
- Max. Discharge Current: 10A
- Weight Approx. Max.: 49.0 g (per cell)
- Operating Temperature:
- Charge 0 ~ 45℃
- Discharge -20 ~ 60℃
- Storage Temperature
- 1 month -20 ~ 60℃
- 3 month -20 ~ 45℃
- 1 year -20 ~ 20℃
Can pair well with any 36V/48V/52V Bafang Mid drive Motor Click here to for motors
