DPC 230 display
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- In stock, ready to ship

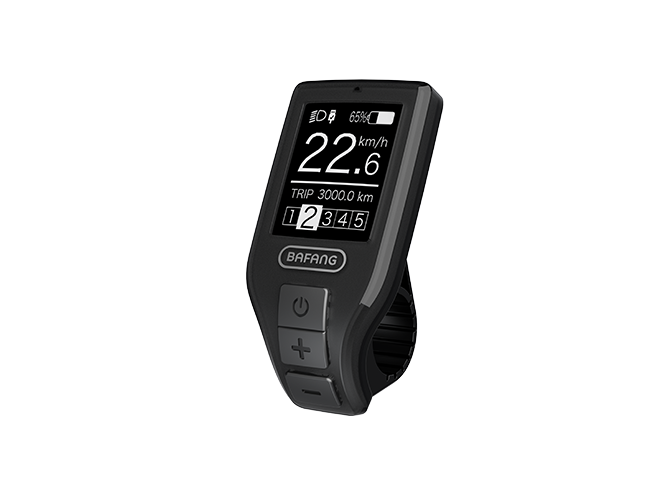

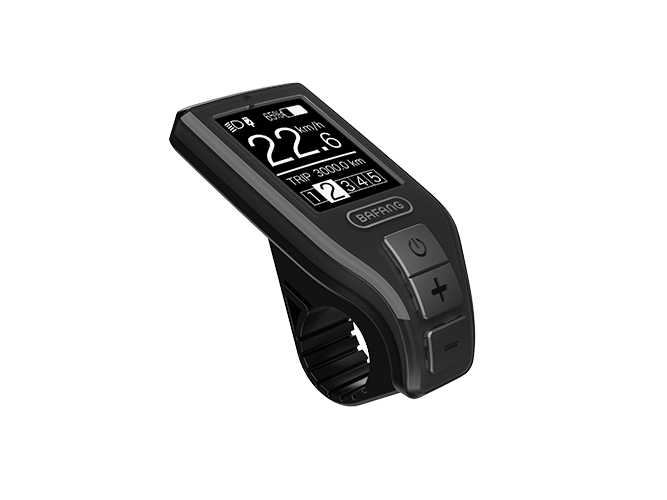

The BAFANG HMI with a high-contrast LCD display delivers all important information at a glance and can also be read in direct sunlight without difficulty. The BAFANG handlebar controller gives good feedback, is extremely robust and easy to use. The additional output can be individually controlled by five support levels. The user interface is clearly legible and intuitive to use. The HMI is compatible with the Bus system RS 232. The HMI is protected against contact and ingress of water and dirt and complies with protection class IP 65. It is available in black.
SPECIFICATIONS
Core Data
| Display Type | LCD |
| Display | Matrix Display |
| Rated Voltage(DCV) | 36/43/48 |
| Support Modes | 0-5 |
| Operating Temperature | -20 - 45℃ |
| Com. Protocol | CAN |
| Weight (g) | 80 |
Mounting Parameters
| Dimensions (mm) | 43*86*86 |
| Holder (mm) | Ø 22.2 |
| Cable Length(mm), Connector Type | 230 M5.4 / 850 M5.4 |
Indication Information
| Current Speed (km/h) | Yes |
| Maximum Speed (km/h) | Yes |
| Average Speed (km/h) | Yes |
| Single Duration Trip | No |
| Single Distance Trip | Yes |
| Total Distance | Yes |
| Reset S.T. Duration | No |
| Reset S.T. Distance | Yes |
| Capacity | Yes |
| Error Code Display | Yes |
| Walk Boost | Yes |
| Backlight | Yes |
| Light Sensor | Yes |
Further Specifications
| Bluetooth | No |
| USB Charge | 5V 500mA |
| USB Communication | NO |
Connectivity
| BAFANG GO | No |
Tests & Certifications
| IP | IP 65 |
| Certifications | CE / EN 15194 / REACH / ROHS |
DIMENSIONS
| Dimension A | 43 mm |
| Dimension B | 86 mm |
| Dimension C | 46 mm |
| Dimension D | Ø22.2 mm |
| Dimension E | 31 mm |
| Dimension F | 39.2 mm |
| Dimension G | 2" |
| Dimension A | 56.5 mm |
| Dimension B | 44 mm |
| Dimension C | 28.95 mm |
| Dimension D | Ø31.8 mm |
| Dimension E | 38.2 mm |
| Dimension F | 27.4 mm |
| Dimension G | 2" |
