EMP Shark style battery is a perfect NEW ebike battery case that is similar to the Sea Dragon but has a much stronger base! This is for most bikes as it has a slim height profile due to its longer shape. The battery case can lock inside of any frame and can also be removed if you are looking to buy an extra case form more range.

NOTE: Custom voltage/capacity combinations not listed here may be available, please reach out if you need help configuring a battery for your setup.

Battery Specifications

  • 24V | 36V | 48V | 52V Lithium-Ion Battery
  • Battery Pack in Water Bottle Mount Case
  • LED light battery gauge indicator
  • Base charge Port  and Battery Charger Port
  • 1-year manufacturer warranty
  • Specifications: Model: Bottle type
  • Battery material: Li-Ion 18650 Cell
  • Nominal voltage: 24V | 36V | 48V | 52V
  • Charge current limit: 8A
  • Charging mode: CC/CV
  • Max charge voltage: (24V=29.4V | 36V=42.6V | 48V=54.6V | 52V=58.8V)
  • 40 Amp continuous 50 Amp burst discharge
  • Cycle life: About 500 cycles

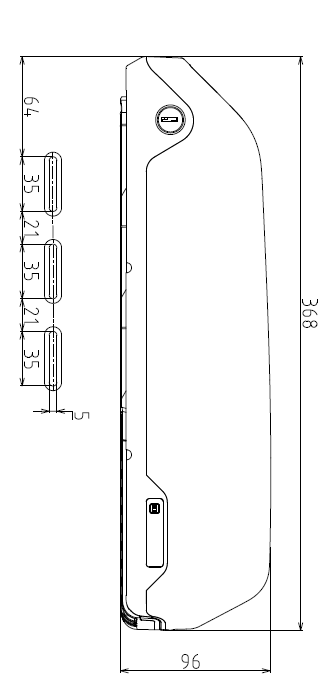

  • Dimension Case: 425 mm * 120 mm * 95 mm
  • Range with one charge: 40 - 50 miles (Depending on Ah/Motor)(ex.: 500W motor)
  • Batteries can be configured with either LG MJ1, Sanyo GA, or Samsung 30Q cells; based off customer application/need. (LG MJ1 is standard)

Battery Cell Specs for LG MJ1

  • Nominal: 3500 mAh Minimum: 3400 mAh
  • Nominal Voltage: Average: 3.635V
  • Constant current: 0.5C
  • Constant voltage: 4.2V
  • End current(Cut off): 50mA
  • Max. Charge Voltage: 4.2 ± 0.05V
  • Max. Charge Current: 1.0 C (3400mA)
  • Standard Discharge Constant current: 0.2C (2800mA)
  • Nominal Discharge: 4000mAh constant current
  • End voltage(Cut off): 2.75V
  • Max. Discharge Current: 10A
  • Weight Approx. Max.: 49.0 g (per cell)
  • Operating Temperature:
    • Charge 0 ~ 45℃
    • Discharge -20 ~ 60℃
  • Storage Temperature
    • 1 month -20 ~ 60℃
    • 3 month -20 ~ 45℃
    • 1 year -20 ~ 20℃


    Can pair well with any 36V/48V/52V Bafang Mid drive Motor Click here to for motors

    $290.00

    Voltage
    Capacity (Ah)
    Quantity
      Product Specs
    • Variant: 24V / 7Ah
    • SKU:
    • In Stock: 0
    • Weight: 8.0 lb
    • Product Type: Battery
    • Brand: EBikeMarketplace
    • Collection:
