Downtube Triangle Bag | Lithium Ion Battery


Voltage (V)
Amp-Hour (Ah)
    Product Specs
  • Variant: 36V / 14Ah
  • SKU: 01-EB-TRI36-4P
  • In Stock: 100
  • Weight: 20.0 lb
  • Product Type: Battery
  • Brand: EBikeMarketplace
  • Collection:
All Batteries are insulated with hard plastic shell as to protect the cells contained within the pack. We have the biggest batteries in the world because we can custom build any battery you need. We build out batteries cause we want to ensure they last for a long time and that you have 100% US support for all your battery needs. You can even chose your own 18650 battery quality as we sell many different 18650 battery cells on our site chose the cells you want. Click Here    This is our special hard plastic that fully protect the battery not only making it safer but it keeps the battery lasting longer while inside the bag. This is perfect for of road bikes as they tend to move around a bit inside so with this added plastic you can ensure the battery will be great even if it moves around.
  • 100% Tested LG/ Samsung / Sanyo Cells
  • 40 amp continuous 80 amp burst BMS
  • Xt-90 lead wire connectors with spark resistor for Discharge
  • Xt-90 Male for the controller
  • XLR 3 pin Charge connector for charging
  • Weight of Battery: 10 - 18 pounds

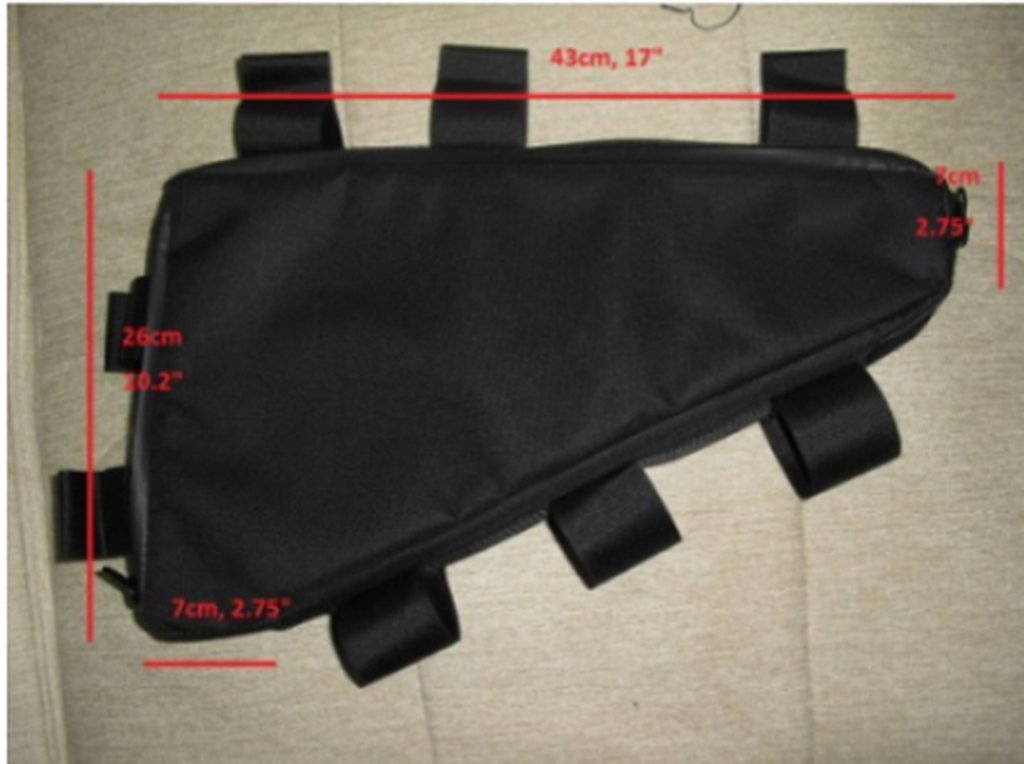

  • Battery Volume Dimensions: 19'' x 17" x 10
Please call to order different connectors or simply leave a note/email with a link to the correct connectors you would like to have installed.
Depending on the battery you chose from you will have an option to place a controller inside as well but if you have a Mid Drive motor why not use that space for more battery capacity.

     We recommended a good charger to use is the Cycle Satiator you can find more compatible chargers here Click Here  Battery Configurations

    36v 14Ah 10s4p
    36v 17Ah 10s5p
    36v 21 Ah 10s6p
    36v 24Ah 10s7p
    36v 28Ah 10s8p
    36v 31Ah 10s9p
    36v 35Ah 10s10p
    36v 38Ah 10s11p
    36v 42Ah 10s12p
    36v 45Ah 10s13p

    EMP triangle Battery  pack will give you the ultimate in long range at an affordable price and is  designed to fit in a triangle bag inside the  frame which is the ultimate mounting solution for a conversion ebike.  In America there are many motors that are super [owerfull its about time someone made a battery to handle It as it  will put out as much power as almost any ebike controller will output. If your ebike is not that powerful dont worry, the battery will only dish out as much power as the controller asks for and no more so you wont fry your current system.  This pack comes with a very advanced BMS (battery management system) which protects the pack from damage during charge and discharge.

    This BMS also has temperature protection to keep the pack from getting too hot during discharge and charging.It is a high power BMS which will allow the pack to put out 50amps continuous (2500 watts) and 80 amp bursts (4000 watts) although running this much power will  reduce packs life expectancy so we recommend to not run your battery to hard if you expect it to last over 500 charges.

    Don’t forget to buy a charger we recommend buying a charger that is below .5c for the battery so if your battery is a 20amps we recommend using a charger that is at least half that amount. 20/2 = 10 amp charger

    We build our batteries in America because we understand that the motors here for ebike are very powerful. So if you plan to buy a motor in America that is more than 500W you should consider buying a battery that can handle that power. In china most motors are 500w and below so the batteries they build in bulk are normally for 500w motors . This is why we encourage everyone to make sure you have a strong battery to handle the motors, even if you don’t by the battery from EMP make sure you are informed!
