36V | 10.5Ah Lithium Ion Battery Pack (Ancheer)
Size chart
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon

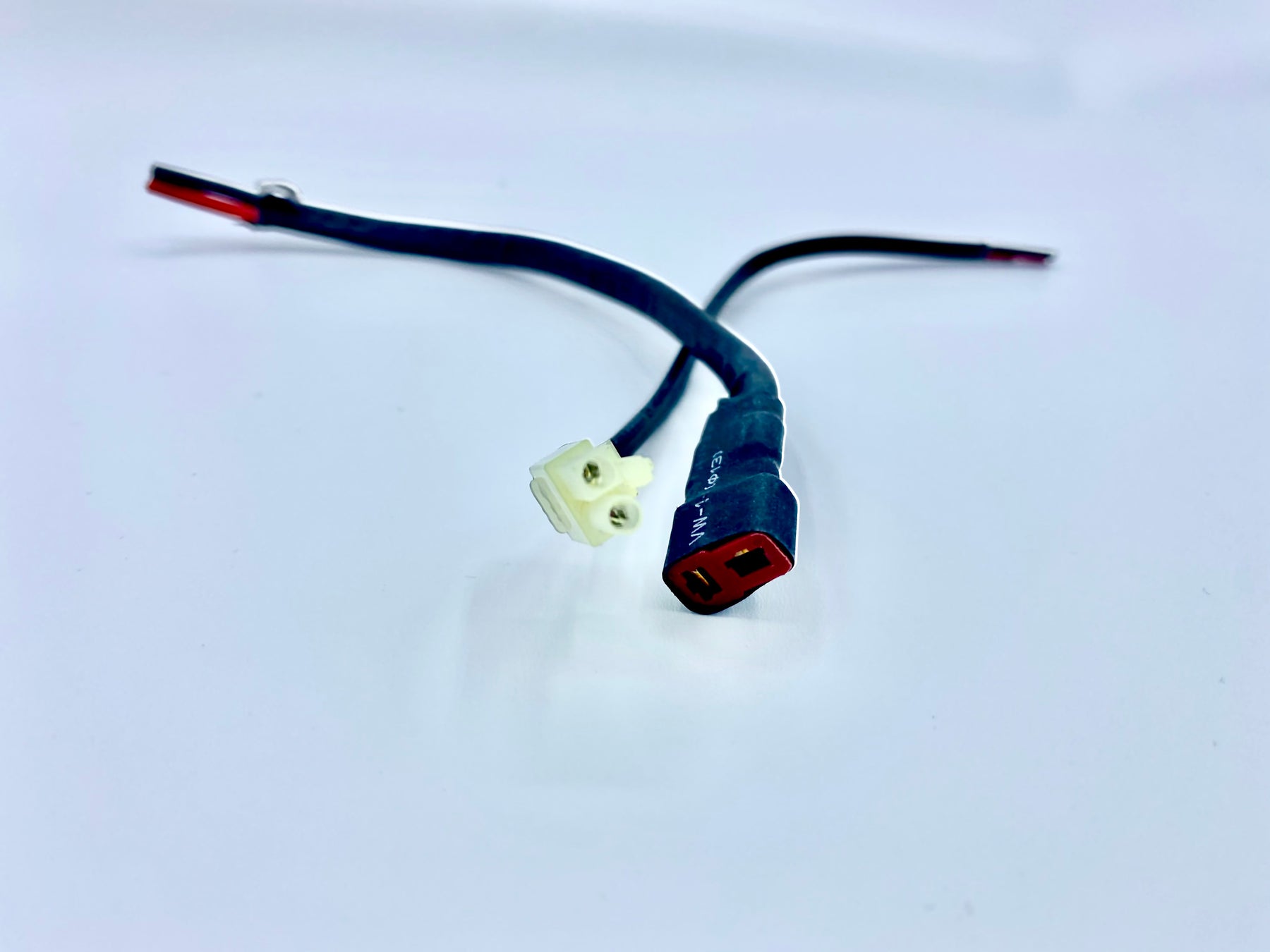

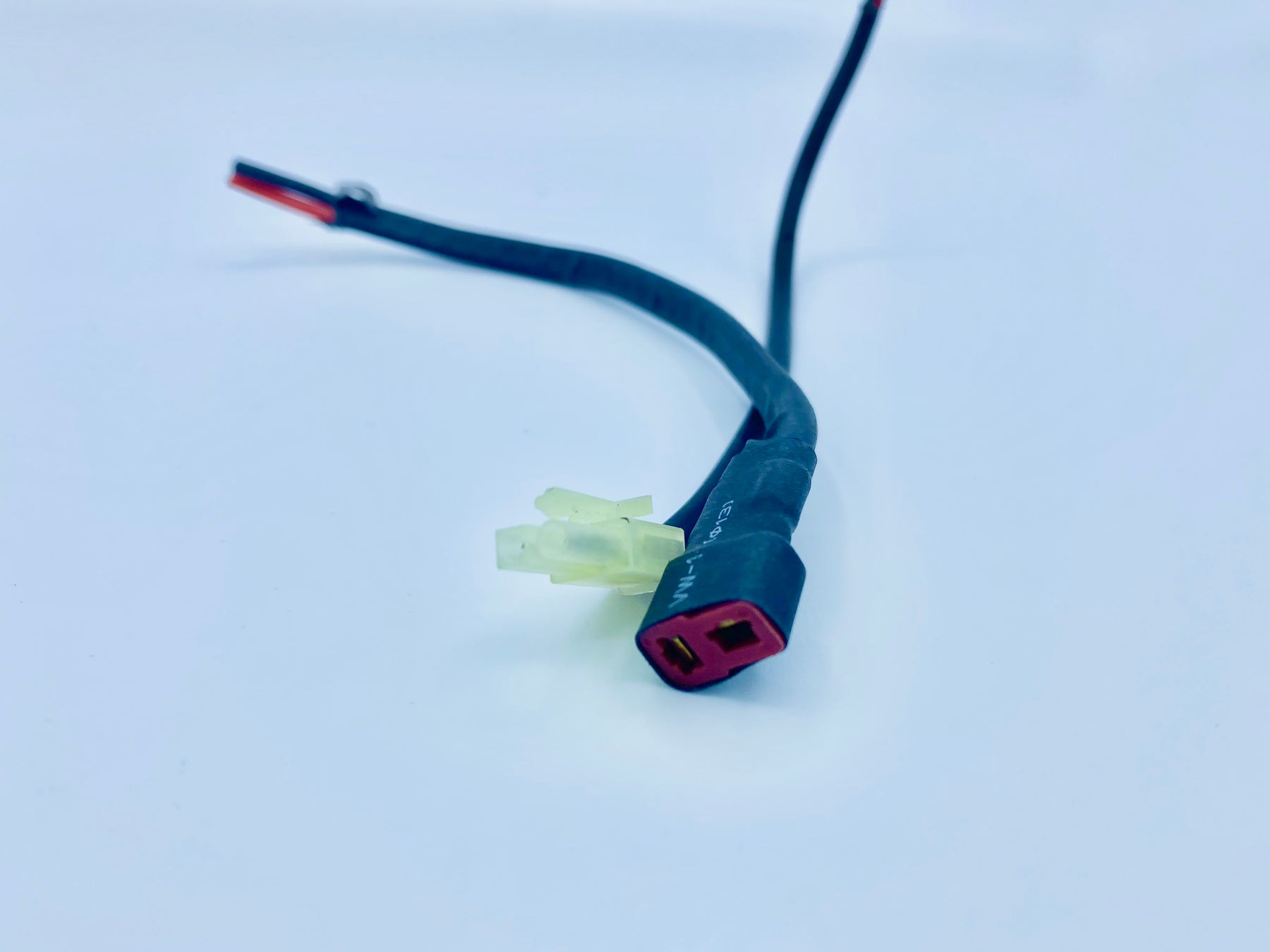

Send us your Ancheer connectors and we will clone a 36V 9Ah naked lithium ion battery pack that will plug and play in the original front bag of your Ancheer ebike.
Custom battery pack 50% restocking fee if returned.

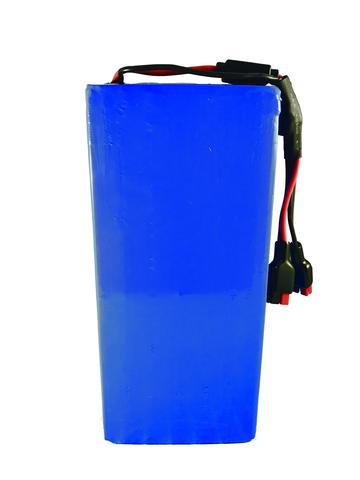

Battery Specification
- 36V 10.5Ah Lithium battery
- 18650 cells - Multiple Name-Brand Options Based on Application
- Nominal Capacity 9Ah
- Nominal Voltage 36V
- Max. charge voltage 42V
- Max. discharge voltage 30V
- Max Input Current 4 amps
- Cycle life 500 times
- Weight 6lbs
- Max Discharge Current Continuous 20 Amps
- Max Discharge Current Peak 40 Amps
- Operating Temperate Range Charge 0˚C ~ 45˚C
- Operating Temperate Range Discharge-20˚C ~ 60˚C
- Storage Temperate Range (Long Term Storage) -10˚C ~ 45˚C (23˚C )
Battery Pack Dimensions
Size 10 s 3p
- Length - 7.5inches
- Width - 2.6 inches
- Height - 2.6 inches
1 Year USA Warranty on Battery
Battery does not come with Charger
Processing Time
- Most in-stock batteries ship within 3–5 business days.
- Custom rebuilds and special orders may take 7–14 business days before shipping.
Shipping Method
- All batteries are shipped via ground service only (FedEx or UPS) in compliance with DOT and IATA regulations for lithium batteries.
- Expedited air shipping is not available for lithium battery products.
Delivery Time
- Ground shipping typically takes 3–7 business days within the U.S.
- Tracking information will be provided as soon as your order ships.
Local Pickup
- Pickup is available at our Las Vegas facility:
6585 S Arville St, Las Vegas, NV 89118
Monday–Friday, 9:00 AM – 5:00 PM (by appointment).
Returns
- Returns are accepted within 14 days of delivery on unused, unopened batteries.
- For rebuilds and custom packs, all sales are final unless defective.
Important Notes
- Shipping is limited to the continental United States.
- Customers are responsible for providing a valid shipping address — carriers cannot deliver to P.O. Boxes.
- Signature may be required at delivery for higher-value battery orders.
