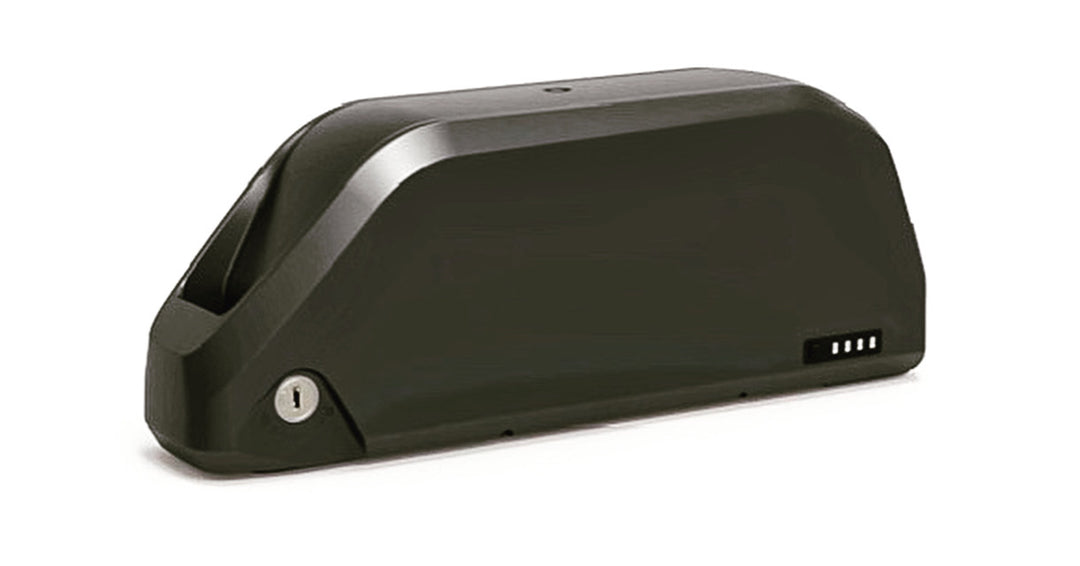

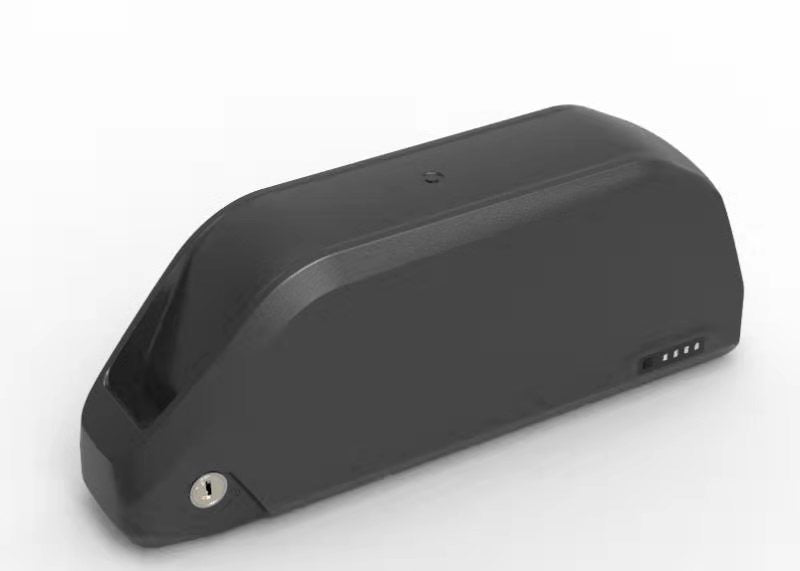

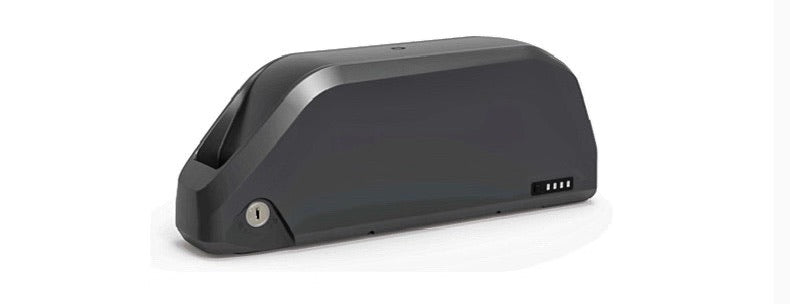

Possibly the world's largest capacity in a down tube for a 48v battery the EMP Shark 3 style battery is perfect for riders looking for long-range in a battery system with a down tube location. The battery case can lock inside of any frame and can also be removed if you are looking to buy an extra case form more range.
40Miles - 60 miles range
Battery Specifications
- 48V 14Ah or 17.5Ah Lithium Polymer
- Battery Pack in Water Bottle Mount Case
- 1 year manufacturer warranty
- Specifications:Model: Bottle type
- Battery material: li-polymer
- Nominal voltage: 48v
- Rated capacity: 24Ah
- Charge current limit: 10A
- Charging mode: CC/CV
- Max charge voltage: 54.6V
- 60 Amp continuous 120 Amp burst discharge
- Cycle life: About 400 cycles
- Range with one charge: 40 - 50 miles (motor 1000w)
- Panasonic GA cells /LG MJ1
- 5mm Barrel Connector Port
Individual Cell Specs LGMJ1 Cells
- Nominal 3500 mAh Minimum 3400 mAh
- Nominal Voltage Average 3.635V
- Constant current 0.5C
- Constant voltage 4.2V
- End current(Cut off) 50mA
- Max. Charge Voltage 4.2 ± 0.05V
- Max. Charge Current 1.0 C
- Standard Discharge Constant current 0.2C
- Nominal Discharge 3000 mAh constant current
- End voltage(Cut off) 2.75V
- Max. Discharge Current 10A
- Weight Approx. Max. 49.0 g (per cell)
- Operating Temperature
- Charge 0 ~ 45℃
- Discharge -20 ~ 60℃
- Storage Temperature
- 1 month -20 ~ 60℃
- 3 month -20 ~ 45℃
- 1 year -20 ~ 20℃
Can pair well with any 48v Bafang Mid drive Motor Click here to for motors
