HP Velotechnik Battery | Rebuild Service
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- In stock, ready to ship
- Backordered, shipping soon
HP Velotechnik Battery | Rebuild Service
Is your HP Velotechnik e-bike / recumbent battery losing range, failing to charge fully, or underperforming? Instead of replacing the entire pack, bring it back to life with our HP Velotechnik Battery Rebuild Service. We preserve your original battery housing, connectors, and mounting system while replacing the internal cells with fresh, high-quality lithium-ion modules—restoring dependability at a fraction of replacement cost.
Rebuild Options
- Standard Rebuild – Restores your battery to its original factory-rated capacity using premium cells.
- Upgraded Capacity – If your housing, wiring, and BMS allow, we can increase the amp-hour (Ah) rating to extend your ride range (compatibility permitting).
What’s Included
- Replacement of all internal lithium-ion cells
- Inspection, cleaning, and refurbishment of your existing battery housing, wiring, and terminals
- Performance testing, cell balancing, and validation
- Reuse or replacement of your original BMS (Battery Management System) if necessary (additional cost may apply)
- 90-day workmanship warranty on the rebuild
HP Velotechnik Models
Our rebuild service supports battery packs used in these HP Velotechnik cycles:
- Scorpion
- Scorpion Plus
- Scorpion FS

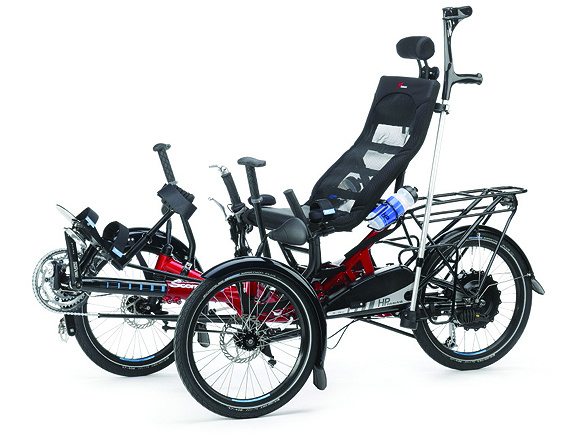

- Scorpion FS 26 (pictured)
- Scorpion FS 20
- Gekko
- Gekko fx
- Gekko 26
- Street Machine
- Trike
- SpeedMachine
- Allround
If your model isn’t listed, just send us a battery photo or spec sheet — we’ll confirm compatibility before you ship.
How It Works
- Place your rebuild order via our Shopify site
- You’ll receive shipping instructions and a battery intake form
- ***Always remember to include your charger when shipping your battery and make sure you fill out the battery intake form. Battery Intake Form
- Ship your original HP Velotechnik battery housing to our rebuild facility
- Our technicians replace internal cells, test, balance, and validate the reconstructed pack
- We ship your rebuilt battery back, ready for performance
Typical turnaround: 2–3 weeks once your battery arrives at our facility.
Why Choose Us?
- Specialized in rebuilding high-end e-bike and recumbent battery systems
- Eco-conscious method: reuse your original housing and reduce waste
- Much more cost-effective than purchasing a new battery pack
- Transparent support, technical guidance, and rebuild warranty protection
Important Notes
- This listing is for a battery rebuild service only — we do not sell new HP Velotechnik battery packs
- You must send in your original battery housing for the rebuild
- Upgraded capacity is possible only where your case, wiring, and BMS support it
- Final pricing depends on battery model, condition, and any upgrade preferences
Restore your HP Velotechnik battery’s strength, reliability, and life—ride farther, smoother, and with confidence once again.
Shown Below:

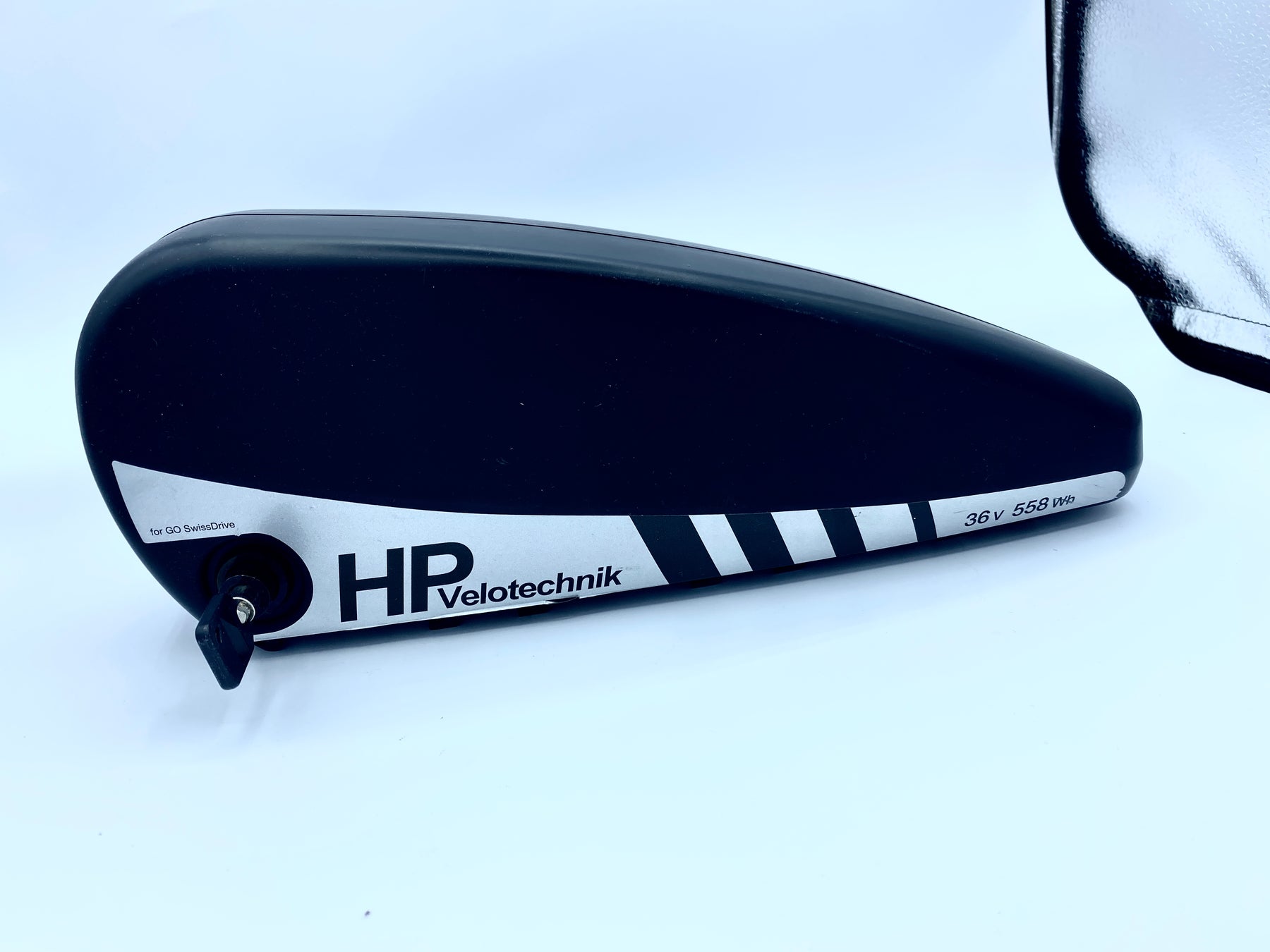

Scorpion Plus 36V 15.5Ah
