36V 4A ST Lithium Ion Battery Charger (Li-Ion)
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping

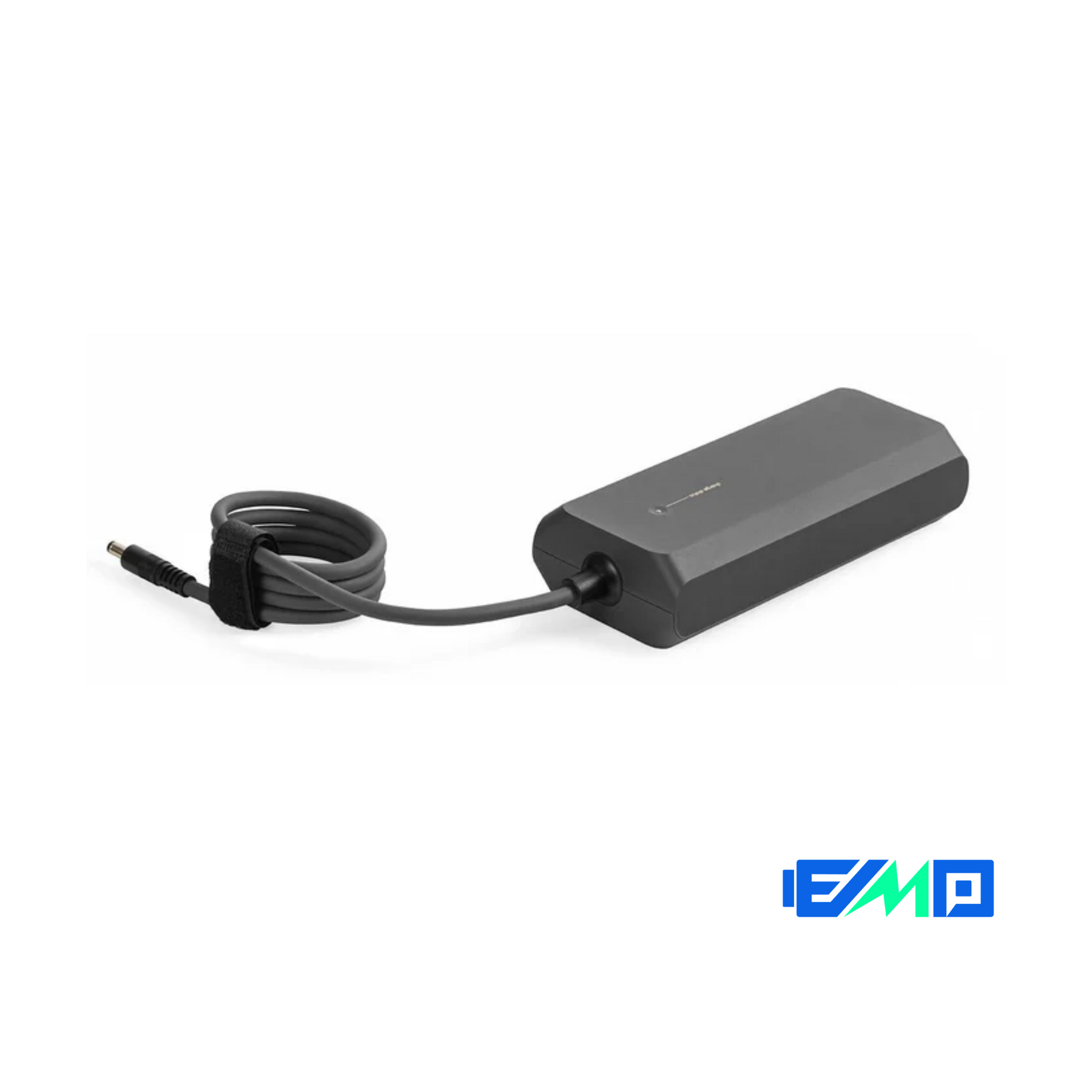

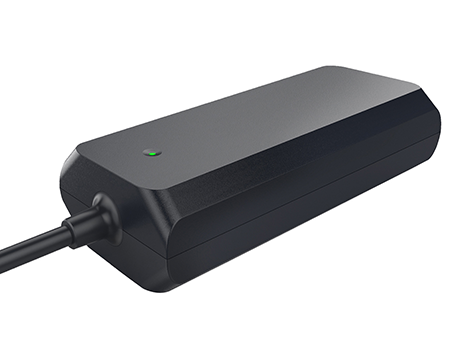

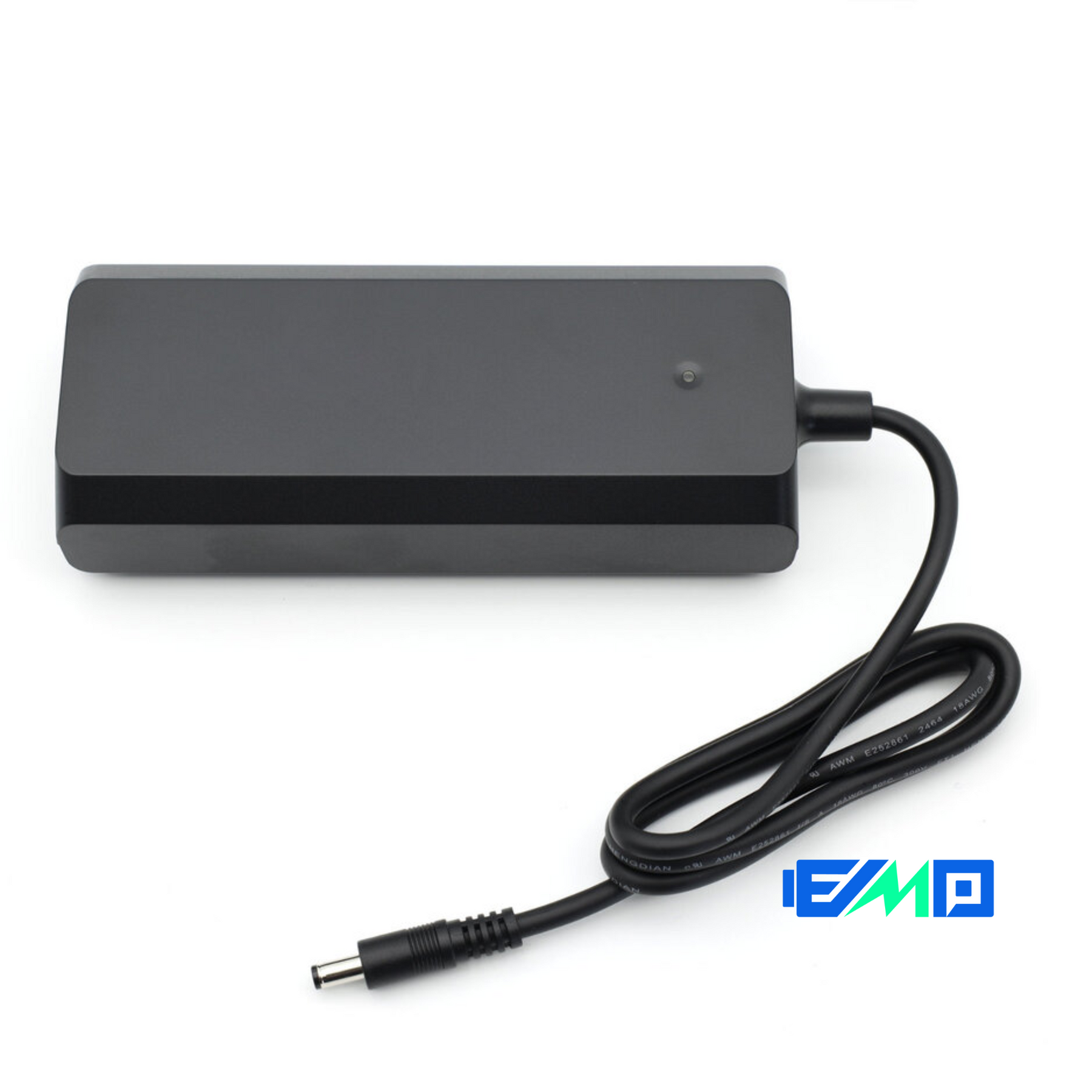

36V 4A ST Lithium Polymer (Li-Ion) Battery Charger
Power up your e-bike with speed and precision using the 36V 4A ST Lithium Polymer (Li-Ion) Battery Charger. Engineered for high-performance lithium-ion batteries, this charger provides fast and reliable charging while safeguarding your battery’s lifespan.
Key Features:
- Fast Charging: 4A output current significantly reduces charging time, so you spend less time waiting and more time riding.
- Battery-Friendly Design: Optimized for 36V Lithium Polymer (Li-Ion) batteries, ensuring efficient and safe energy transfer without compromising battery health.
- Advanced Safety Features: Equipped with overvoltage, overcurrent, short-circuit, and overheat protection for ultimate safety and durability.
- Smart Charging Technology: Automatic shutoff when the battery is fully charged to prevent overcharging and maximize battery life.
- Durable Build: High-quality materials and robust construction for long-term reliability and performance.
- LED Status Indicators: Intuitive LED lights show charging progress at a glance, so you’re always in the know.
Specifications:
- Input Voltage: 100-240V, 50/60Hz (suitable for global use)
- Output Voltage: 36V DC
- Output Current: 4A
- Connector Type: Standard DC plug (custom options available upon request)
- Cable Length: 6 feet
Whether you’re a daily commuter or an avid e-bike adventurer, the 36V 4A ST Lithium Polymer Battery Charger ensures you’re always ready to hit the road. Combining speed, safety, and efficiency, it’s the ultimate charging solution for your 36V e-bike.
C
| Dimension | 180*75*40 mm | ||
|---|---|---|---|
| Weight | 650g | ||
| Cooling Style | Fanless | ||
| Temperature Rise | △ T = 33° | ||
| Output | 4A max 42 ± 0.2V | ||
| Input | 220-240V 50-60 Hz | ||
| Output Power | 180 W | ||
| Switch Off Current | 250 ± 100 mA | ||
| Efficiency | > 92% | ||
| Compatible Norms |
EN 61000 IEC 60664 IEC 60335 EN 55014 |
||
| Dielectric Strength | 3.75KV | ||
| Ingress Protection | IP54 | ||
| Operation Temperature | 0 to 40° | ||
| Storage Temperature | - 40 to 55° | ||
| Operation Humidity | 20% - 85% | ||
| Storage Humidity | 10% - 95% |
Unless otherwise specified, the charger will come with a standard Plug. Color may vary. When you place an order, request the below, and we will modify the charge to fit your battery.
