D79-175XL Hub Motor 1500 Watt | High Power Fat Motor
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- Low stock - 1 item left
- Backordered, shipping soon
Description
60 Volt Version Only | 35 Amp Controller Included High Speed

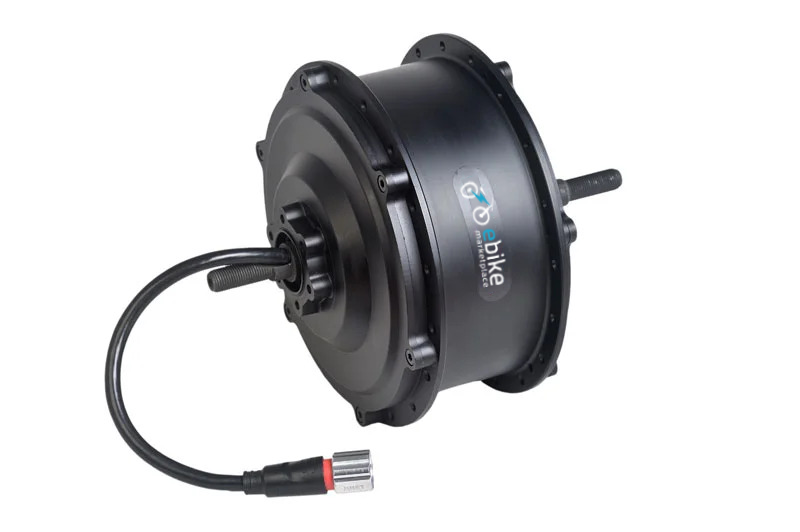

START YOUR ADVENTURE WITH THE D79-175XL REAR HUB MOTOR!
High-Power Rear Hub Motor: The ultimate source of e-bike excitement.
Preferred by Electric Bike Manufacturers: Trusted for crafting durable e-bikes.
Tailored for Fat Tire E-Bikes: Specifically designed for fat tire electric bicycles.
Customizable Power Output: Customize power from 1000W to an exhilarating 2000W, with a max torque of 110N.m!
Built to Last: Crafted from rust-resistant aluminum alloys, ensuring resilience in any environment.
Lightweight and Low Maintenance: Enjoy a durable, featherweight design.
Whisper-Quiet Operation: An integrated high-power motor delivers a silent, powerful, and rapid start, with excellent climbing ability.
High Efficiency, Low Noise, and Rapid Response: Experience a perfect balance of power and tranquility.
Why wait? Reach Out to Us today!
Information
ADDITIONAL INFORMATION
| D79 Series |
D79-175XL |
|---|---|
| Colour |
Black / Silver |
| Installation Site |
Rear |
| Applied for E-bikes |
e-FAT |
| Cable Routing |
Side-Left |
| Cable Length(mm) |
200 |
| Sprocket Wheel |
6～7 |
| Brake Style |
Disk-Brake |
| Spokes Holes |
36H |
| Spokes Size |
13G/12G |
| Spokes Central Dist.(mm) |
174 |
| Open Size(mm) |
175 |
| Wheel Size(inch) |
20/26/28/700C |
| Voltage(Vdc) |
48, 52, 60 |
| Rated Power(W) |
1000,1500,2000 |
| Max Speed(km/h) |
50, 55, 60 |
| Max Torque(N.m) |
110 |
| Reduction Ratio |
5.8:1 |
| Magnet Items(pcs) |
16 |
| Speed Sensor(pcs) |
1～6 |
| Efficiency(%) |
≥80 |
| Work Temperature(℃) |
-20～45 |
| Noise Items(dB) |
＜50 |
| Weight(kg) |
5.8 |
| Waterproof Level |
IP65 |
| Shells Material |
Aluminium Alloy |
