Eahora DL2000
Size chart
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- Low stock - 10 items left
Meet Eahora DL2000, its futuristic frame design, reminiscent of a motorcycle, sets it apart from the crowd. featuring the 52V dual-motor riding system, DL2000 delivers exceptional power and durability, making it the ideal choice for motorcycle enthusiasts seeking performance and reliability.

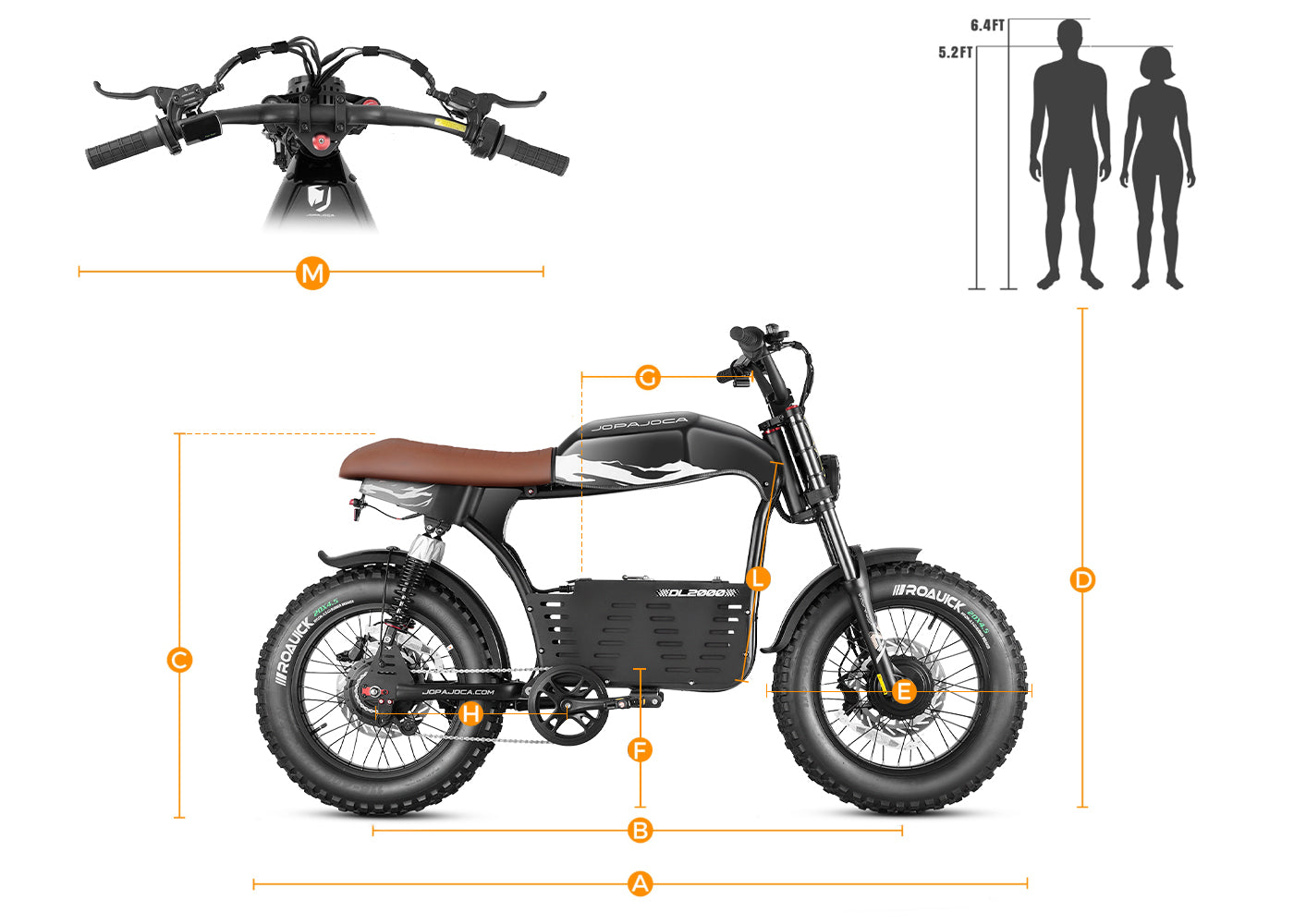

Size & Geometry
Technical Specifications
*To ensure uninterrupted supplying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
General Information
- Top Speed
- 34 - 38 mph for both pedal-assist and throttle
- Range per Charge
- 40 - 50 miles w/o PAS
- Max Load
- ≤ 330 lbs to ensure the performance and safety
- Rider Height
- 5'7" - 6'4", or inseam ≥ 28.7"
- Bike Weight
- 164.2 lbs with the battery (28.9 lbs) installed
- Ideal Use
- IPX6 weather-proof, off-road / mountain / urban riding
Riding with Unmatched Power
- Battery Capacity
- 1,560 Watt·hour (52V 30Ah)
- Cells Type
- Lithium-ion pouch cells, Grade A
- Battery Lifespan
- ≥ 1,000 charge cycles to 80% of capacity
- Motor Power
- 2 x 800 Watt
- Motor Torque
- 2 x 65 Newton·metre (max)
- Motor Type
- Rear hub motor, brushless, IPX6
- PAS Levels
- None
- Throttle Type
- 5 Levels twist, slightly delayed response (safe design)
- Display / Dashboard
- Color LCD
- Shifting Gears
- Sigle speed no shifting, 44T chainring
- Battery Charger
- 58.8V 4.5A Quick charger, 5.5-6.5H charge time
- Additional Modes
- Cruise Control, 6 km/h Walk
Biking Safely & Confidently
- Brake System
- Hydraulic disc brakes with motor cutoff
- Brake Rotors
- 240mm (φ) x 3.0mm (t) steel rotors
- Brake Caliper/Pads
- 2-Piston calipers with semi-metallic pads
- Bike Frame
- High-carbon steel 20" x 17" frame
- Front Fork
- Adjustable hydraulic suspension, 100mm travel
- Shock Absorber
- FASTACE coil suspension
- Head Light
- 2,500 Lumens (25W) LED with built-in horn
- Tail Light
- LED with integrated brake signal blinker
- Additinal Reflectors
- Pedals, spokes, tires
- Tire Type
- 20" x 4.5" fat tires with tube (28-33 psi)
- Saddle
- Motorcycle-style saddle seat
- Handlebar
- Aluminum 730mm, rise
Components & Accessories
- Bell
- Electric horn built-in headlight
- Crankset
- 140mm Aluminum, 44T chainring w/ dual-sided cover
- Pedals
- WELLGO 16/9 aluminum alloy platform
- Derailleur
- None, single-speed
- Shifter
- None, single-speed
- Freewheel / Cassette
- None, single-speed, 24T
- Rims
- 36H aluminum alloy rims
- Spokes
- Black stainless steel
- Grips
- 120mm x 22.2mm (φ) rubber, anti-slip
- Seatpost
- No Seatpost for motorcycle-style seat
- Headset
- Integrated threadless headset
- Stem
- 31.8mm (φ, handlebar) * 35° A-head
- Kickstand
- Aluminum alloy heavy-duty
- Racks & Baskset
- None
- Fenders
- Front & Rear fenders included
