Eahora Luna
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- Low stock - 10 items left
- Backordered, shipping soon

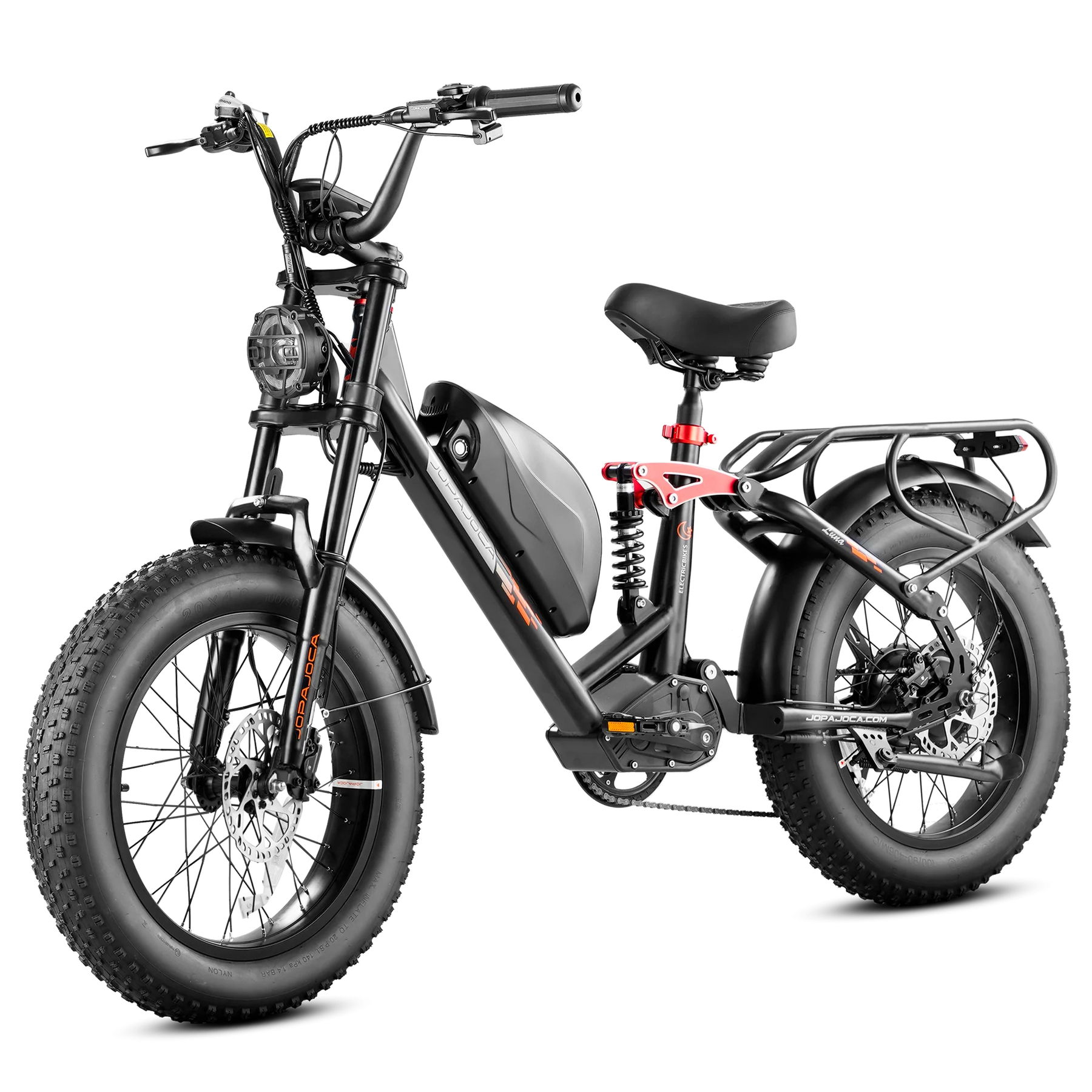

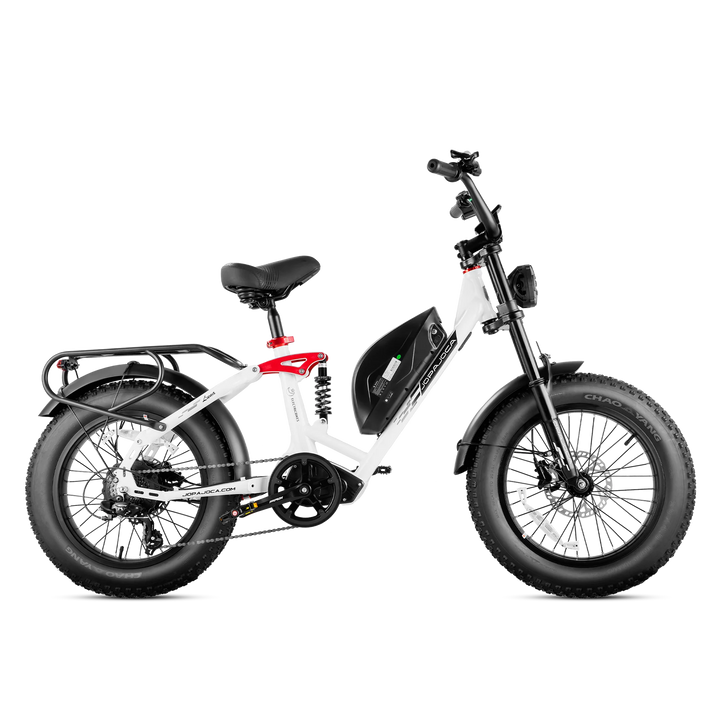

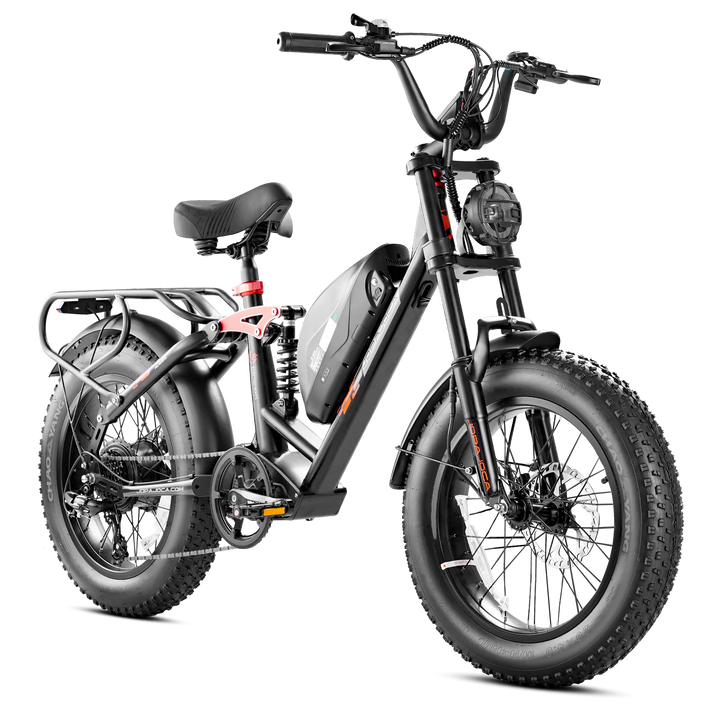

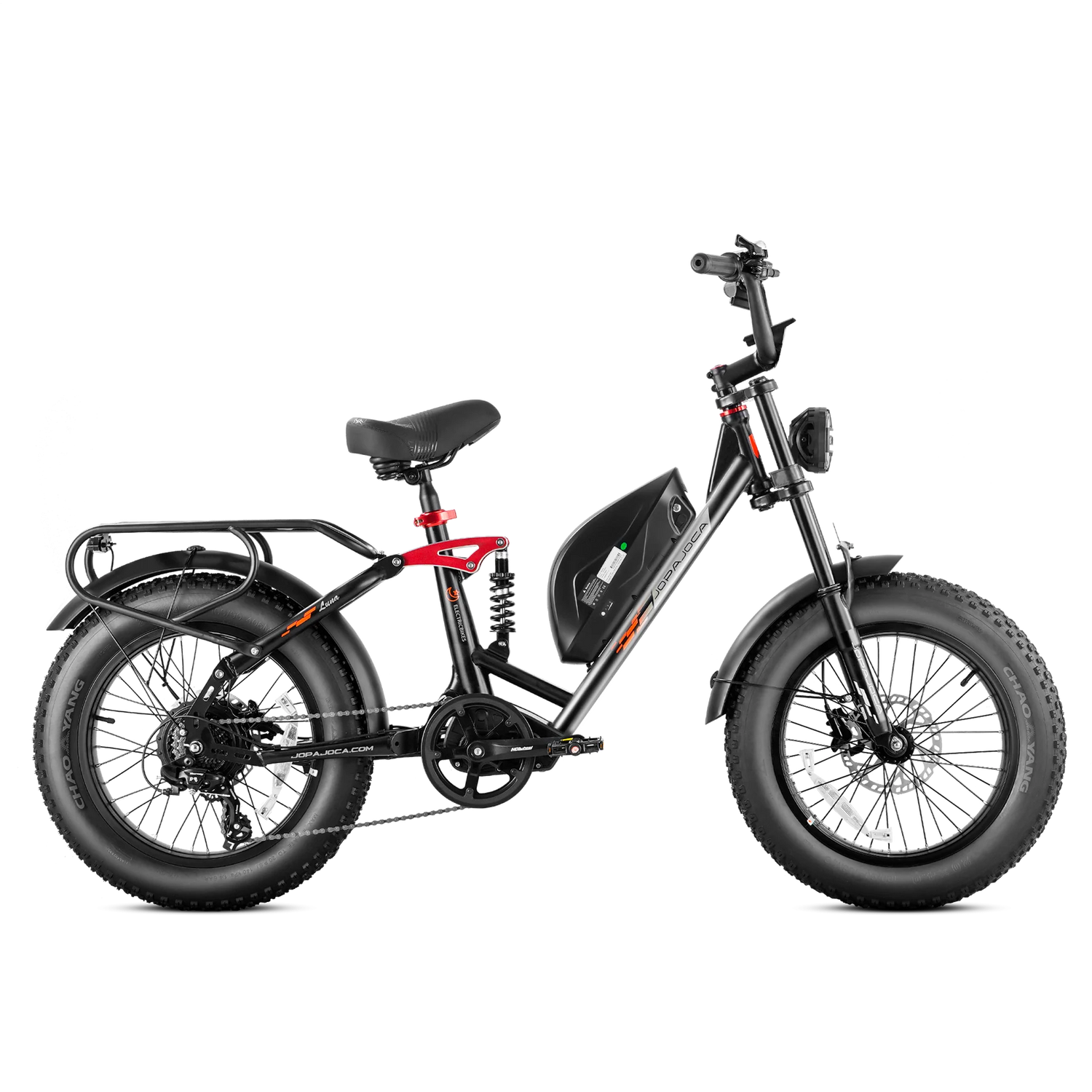

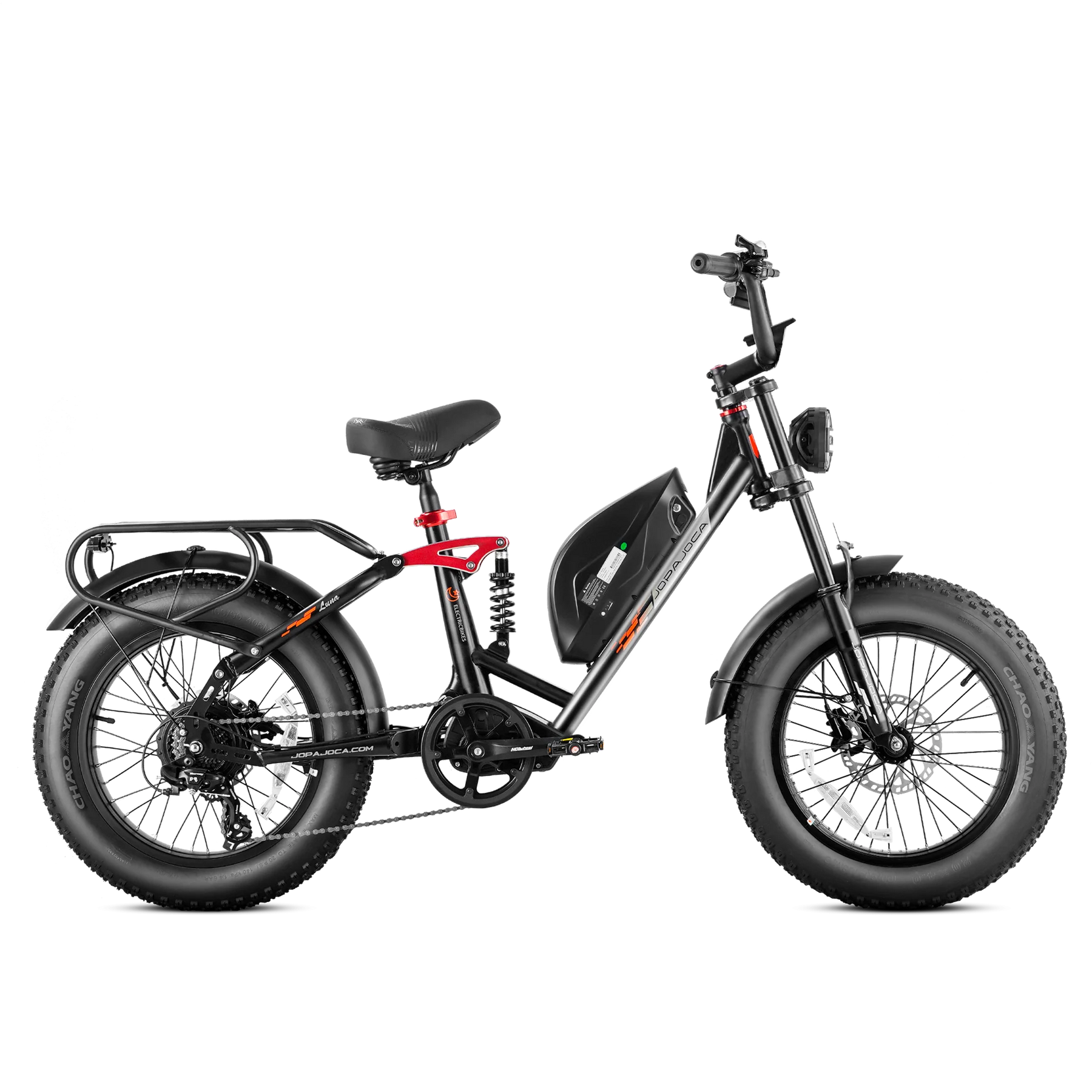

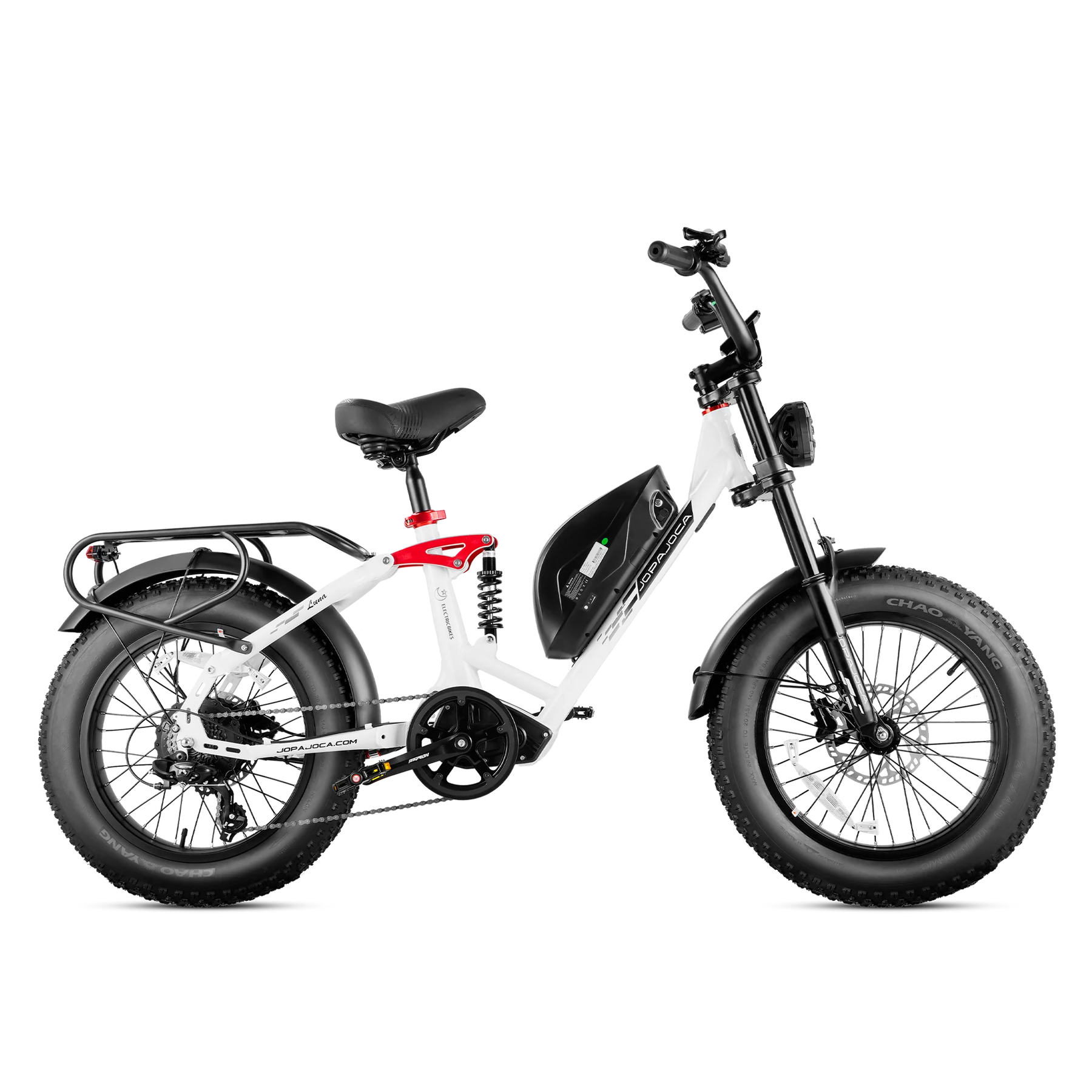

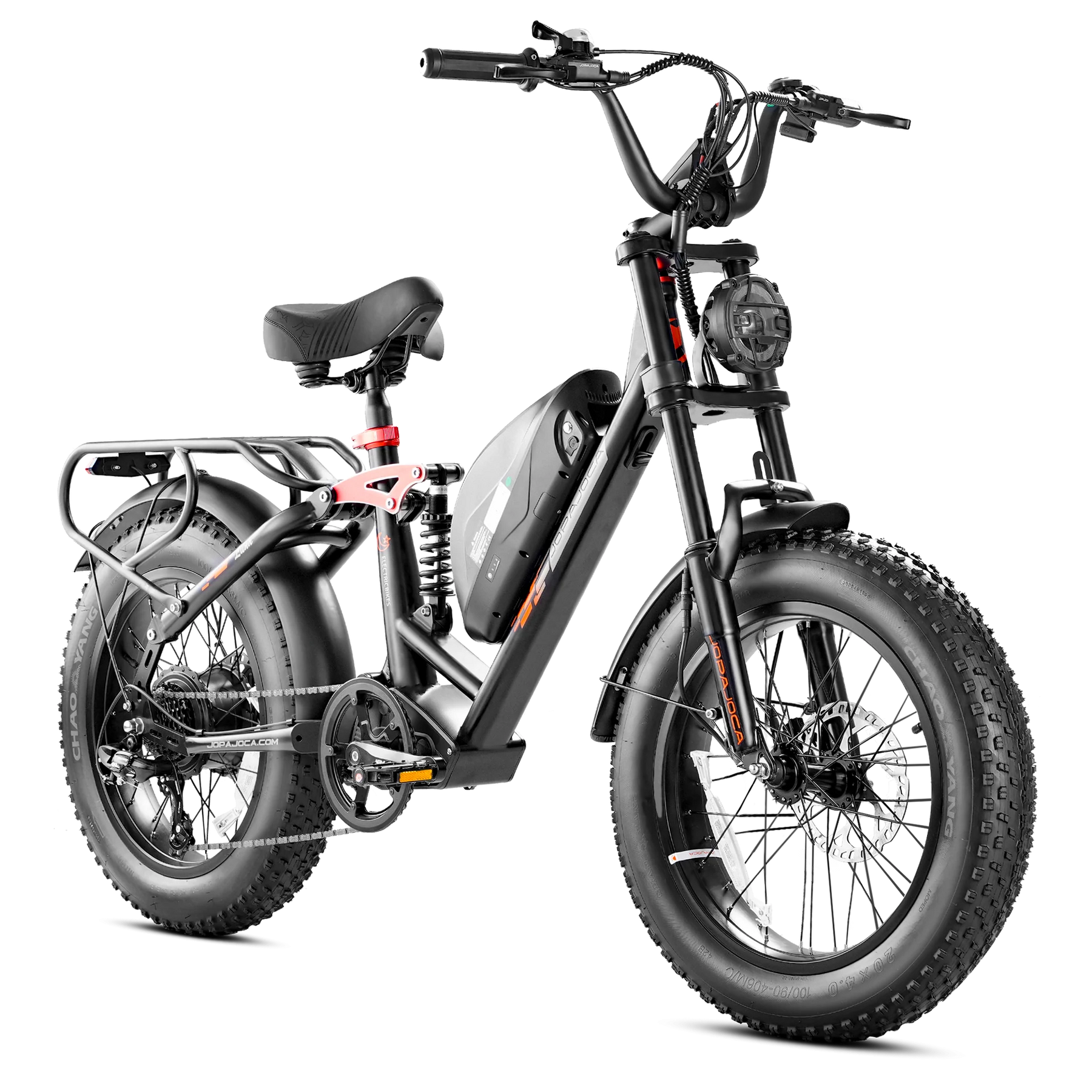

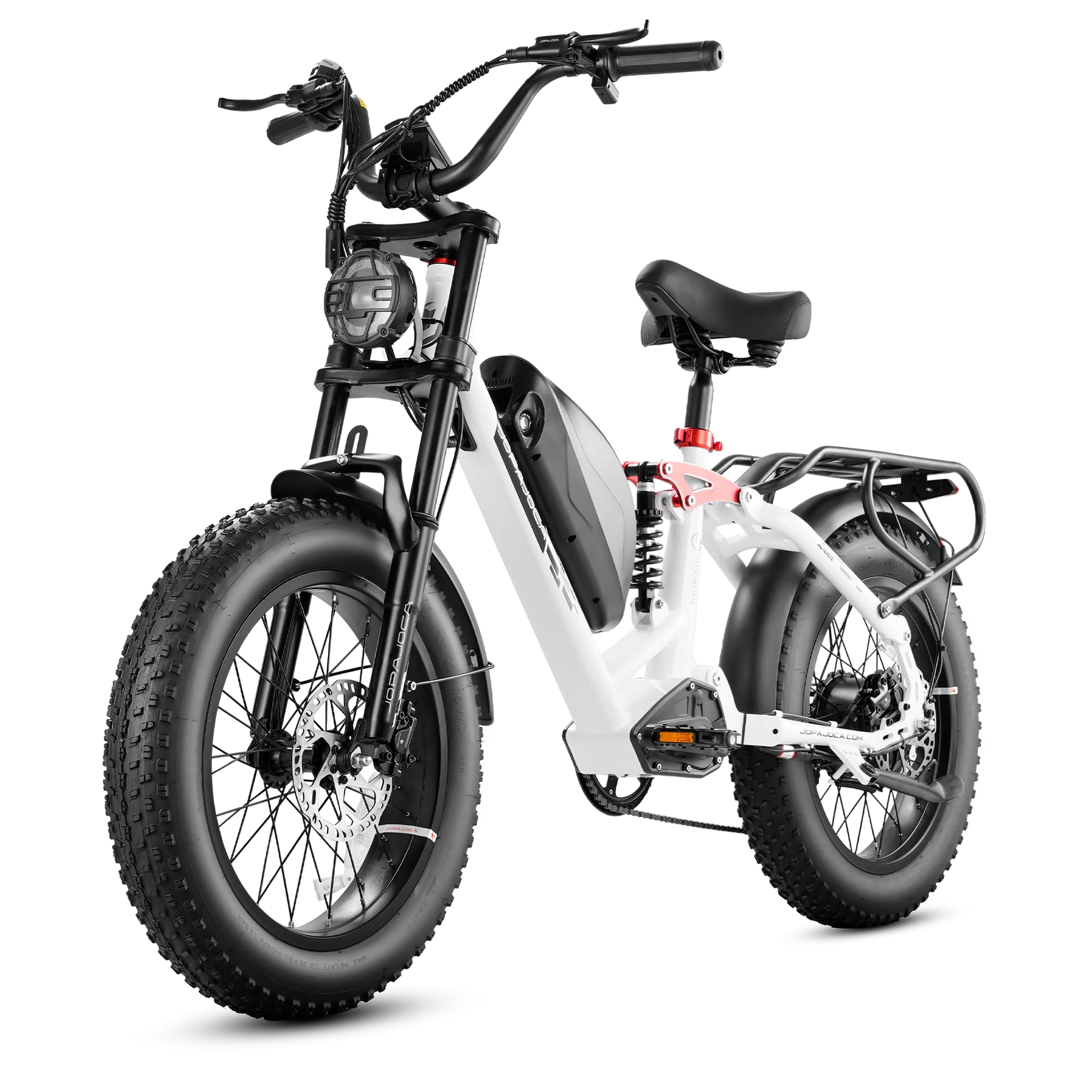

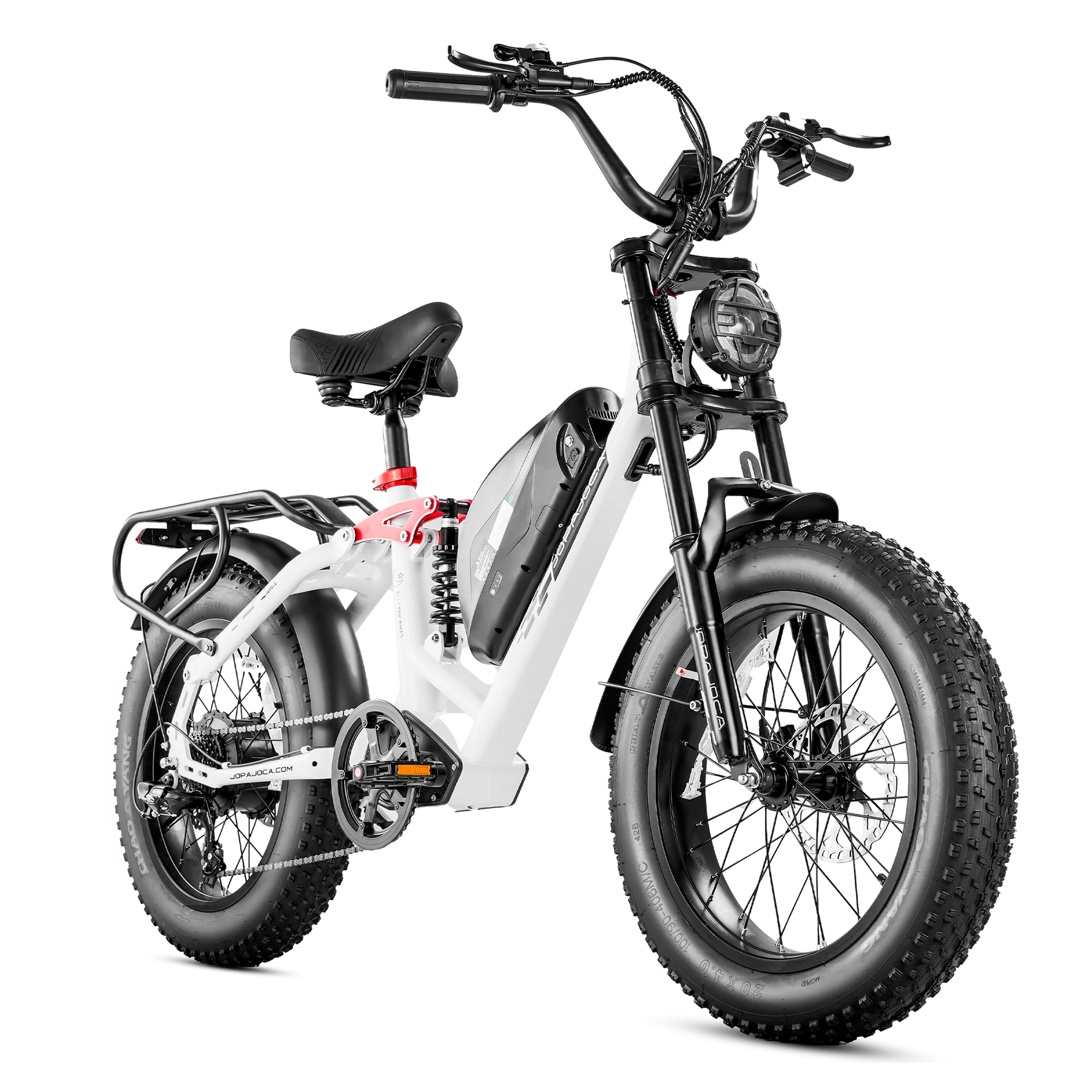

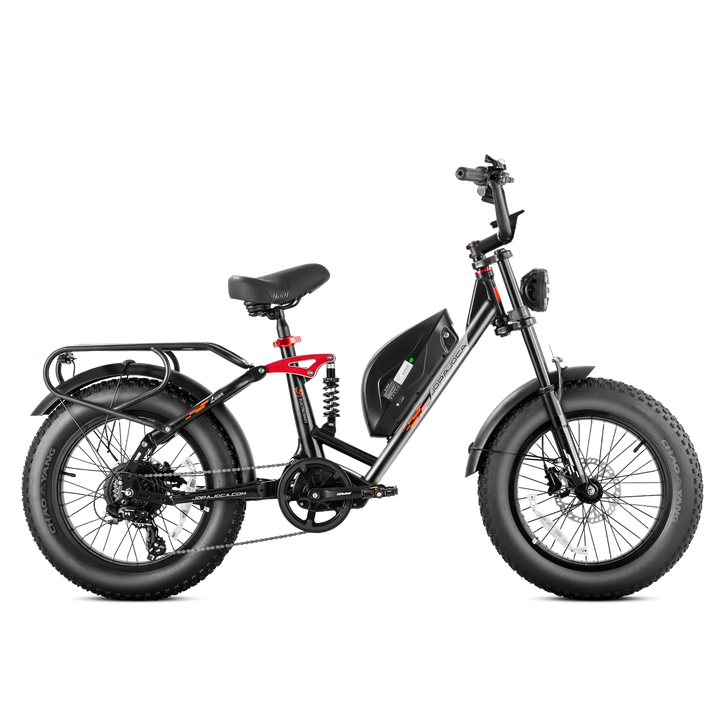

Meet Eahora Luna, the perfect commuter ebike for your weekend adventures or daily commute. Featuring a 1000W powerful motor, Luna goes farther and tackles steeper hills with ease compared to similar ebikes. Equipped with advanced full suspension and 180 mm hydraulic brakes, it ensures you ride in style, safety, and comfort.
Size & Geometry
Recommended Rider Height: 5'4" - 6'4" or 165CM - 195CM
Ⓐ - Total Length: 72.05" or 183CM
Ⓑ - Wheel Base: 48.8" or 124CM
Ⓒ - Seat Height: 32.3" - 40.2" or 82CM - 102CM
Ⓓ - Handlebar Height: 42.5" or 108CM
Ⓔ - Rim Diameter: 16.4" or 42CM
Ⓕ - Standover: 24.2" or 61.5CM
Ⓖ - Reach Distance: 22.8" or 58CM
Ⓗ - Chain Stay Length: 18.9" or 48CM
Ⓘ - Seat Angle: 74.7°
Ⓙ - Seat Tube Length: 10.6" or 27CM
Ⓚ - Bike Width: 28" or 71CM
Ⓛ - Top Tube Length: 23.6" or 60CM
Technical Specifications
*To ensure uninterrupted supplying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
General Information
- Top Speed
- 28 - 33 mph for both pedal-assist and throttle.
- Range per Charge
-
44 - 58 miles with PAS, or 35 - 45 miles w/o PAS
- Max Load
- ≤ 330 lbs to ensure the performance and safety.
- Rider Height
- 5'4" - 6'1", or inseam ≥ 26.8".
- Bike Weight
- 91 lbs with the battery installed.
- Ideal Use
- IPX6 weather-proof, off-road / mountain / urban riding.
Riding with Unmatched Power
- Battery Capacity
- 720 Watt·hour (48V 15Ah).
- Cells Type
- Lithium-ion pouch cells, Grade A.
- Battery Lifespan
- ≥ 1200 charge cycles to 80% of capacity.
- Motor Power
-
1,000W, or peak 1,500W.
- Motor Torque
- 90 Newton·metre (max).
- Motor Type
- Brushless rear hub motor, IPX6.
- PAS Levels
- 5 Levels with Cadence Sensor.
- Throttle Type
-
5 Levels twist, slightly delayed response (safe design).
- Display / Dashboard
- 4" color LCD, motors switch, USB charge port.
- Shifting Gears
- Shimano 7s 14-28T, 48T chainring.
- Battery Charger
- 48V 2A charger
- Additional Modes
- Cruise Control, 6 km/h Walk.
Biking Safely & Confidently
- Brake System
- Hydraulic disc brakes with motor cutoff.
- Brake Rotors
- 180mm (φ) x 2.3mm (t) steel rotors.
- Brake Caliper/Pads
- 2-Piston calipers with semi-metallic pads.
- Bike Frame
- High-carbon steel 20" x 15" frame.
- Front Fork
- Adjustable 80mm tavel coil suspension.
- Shock Absorber
- 4-Bar-Link coil suspension, 50mm travel.
- Head Light
- 1,500 Lumens (15W) LED with built-in horn.
- Tail Light
- LED with integrated brake signal blinker.
- Additinal Reflectors
- Pedals, spokes, tires.
- Tire Type
- CST BFT 20" x 4.0" tires with tube (28-33 psi).
- Saddle
- Leather wide seat with memory foam.
- Handlebar
- Aluminum 680mm x 31.8mm (φ, center), rise.
Components & Accessories
- Bell
- Electric horn built-in headlight.
- Crankset
- 170mm Aluminum, 48T chainring with cover.
- Pedals
- WELLGO 16/9 aluminum alloy platform.
- Derailleur
- SHIMANO RD-TY300 7 speed.
- Shifter
- SHIMANO ASLTX50R7CT 22.2mm x 2400mm.
- Freewheel / Cassette
- SHIMANO MF-TZ500-7 14-28T.
- Rims
- 36H aluminum alloy rims.
- Spokes
- Black stainless steel.
- Grips
- 120mm x 22.2mm (φ) rubber, anti-slip.
- Seatpost
- Aluminum seapost with 38.1mm clamp.
- Headset
- Integrated threadless headset.
- Stem
- 31.8mm (φ, handlebar) * 35° A-head.
- Kickstand
- Aluminum alloy heavy-duty.
- Racks & Baskset
- Customized rear rack.
- Fenders
- Included plastic front and rear fenders.
