EKIDS-16 2024
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- Low stock - 10 items left
Innovative Battery Design
This battery casing is independently designed and developed by our company, representing a proprietary innovation for which we have applied for a patent. Meticulously crafted, the bike frame perfectly mirrors the dimensions of the battery box, emphasizing our commitment to seamless integration and aesthetic harmony.
180W Hub Motor
EKIDS-16 boasts a 180w motor capable of reaching speeds up to 12.5 mph, striking a balance between excitement and safety.
3 Speed Options
The gear selector offers three distinct speed settings: 5, 7.5, and 12.5 MPH, providing flexibility and adaptability to different riding conditions. The throttle engages only after reaching 3km/h, prioritizing safety and ensuring a gradual acceleration process.
Power Up
Introducing a user-friendly one-click application. Designed for kids to operate independently, without parental assistance. Featuring a battery indicator for easy monitoring, even children can recognize when it's time to recharge.
Features
Specification
- Battery: 24V 10Ah Battery with EUNORAU-designed battery casing
- Range: 25 Miles

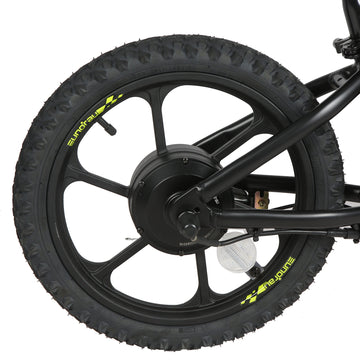

- Motor: 24V 180W rear motor
- Total Payload Capacity: 120 lbs
- Recommended Rider Heights: 3'0" ~ 4'5"
- Age Guideline: Ages 5 and above
- Maximum Speed: 3 speed limits on the handlebar ( 5, 7.5, 12.5 MPH )
- Charger: US standard 2.0 A smart charger
- Display: No display equipped
- Battery Type: Lithium-ion
- Battery Charging Time: 4 - 5 hours
- Box Dimensions: (cm) 112 L x 24.5 W x 75.5 H
- Weight: 28.6 lbs
Components
- Tires: 16*1.95", front & rear integral wheel

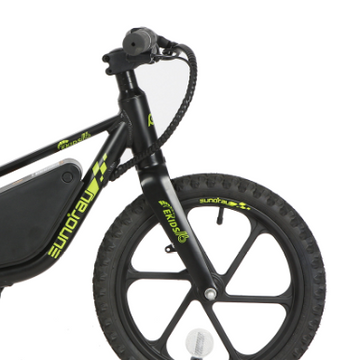

- Fork: Integrated die-cast aluminum alloy
- Brake lever: Rear band-type brake

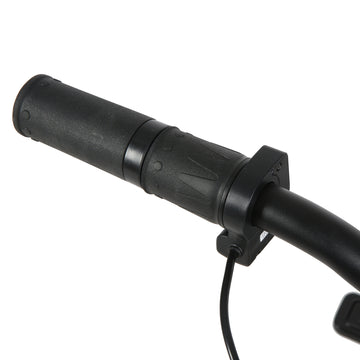

- Throttle: Half-twist throttle, activated after reaching 3 km/h
- Pedal: No pedals equipped
- Frame: Aluminum alloy 6061

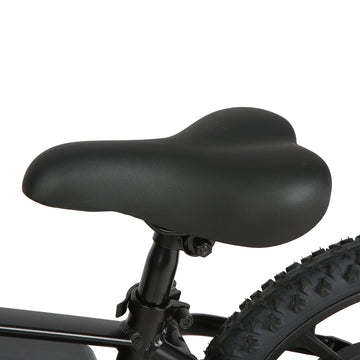

- Saddle: Comfortable saddle, height to ground 18.5"-22.8"
- Handlebar: Comfortable stem
- Light: Wheel reflector
- Tool: Included
Package Includes
- Balance eBike x 1
- Accessory Box x 1
(Tool kit, repainting solution, footpegs, warranty card, and charger)
Geometry
Processing Time
- Most in-stock batteries ship within 3–5 business days.
- Custom rebuilds and special orders may take 7–14 business days before shipping.
Shipping Method
- All batteries are shipped via ground service only (FedEx or UPS) in compliance with DOT and IATA regulations for lithium batteries.
- Expedited air shipping is not available for lithium battery products.
Delivery Time
- Ground shipping typically takes 3–7 business days within the U.S.
- Tracking information will be provided as soon as your order ships.
Local Pickup
- Pickup is available at our Las Vegas facility:
6585 S Arville St, Las Vegas, NV 89118
Monday–Friday, 9:00 AM – 5:00 PM (by appointment).
Returns
- Returns are accepted within 14 days of delivery on unused, unopened batteries.
- For rebuilds and custom packs, all sales are final unless defective.
Important Notes
- Shipping is limited to the continental United States.
- Customers are responsible for providing a valid shipping address — carriers cannot deliver to P.O. Boxes.
- Signature may be required at delivery for higher-value battery orders.
