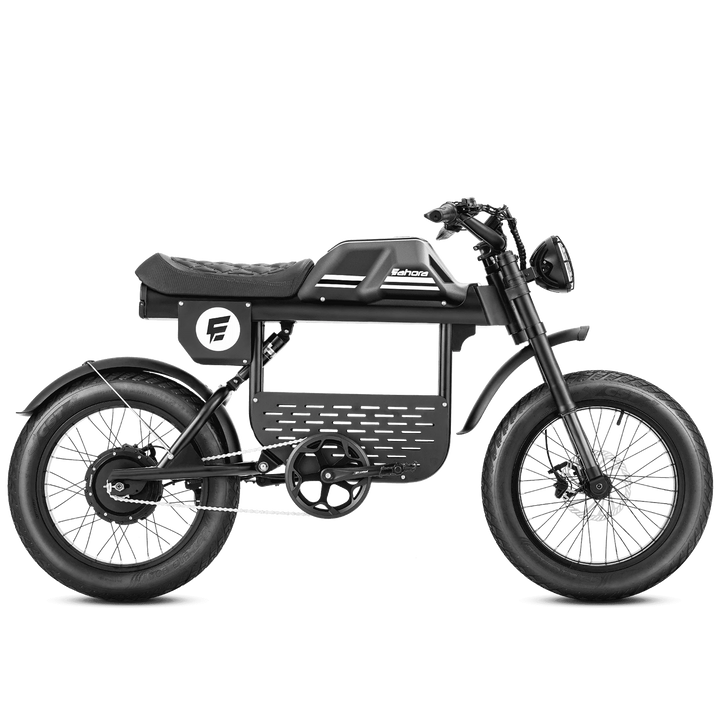

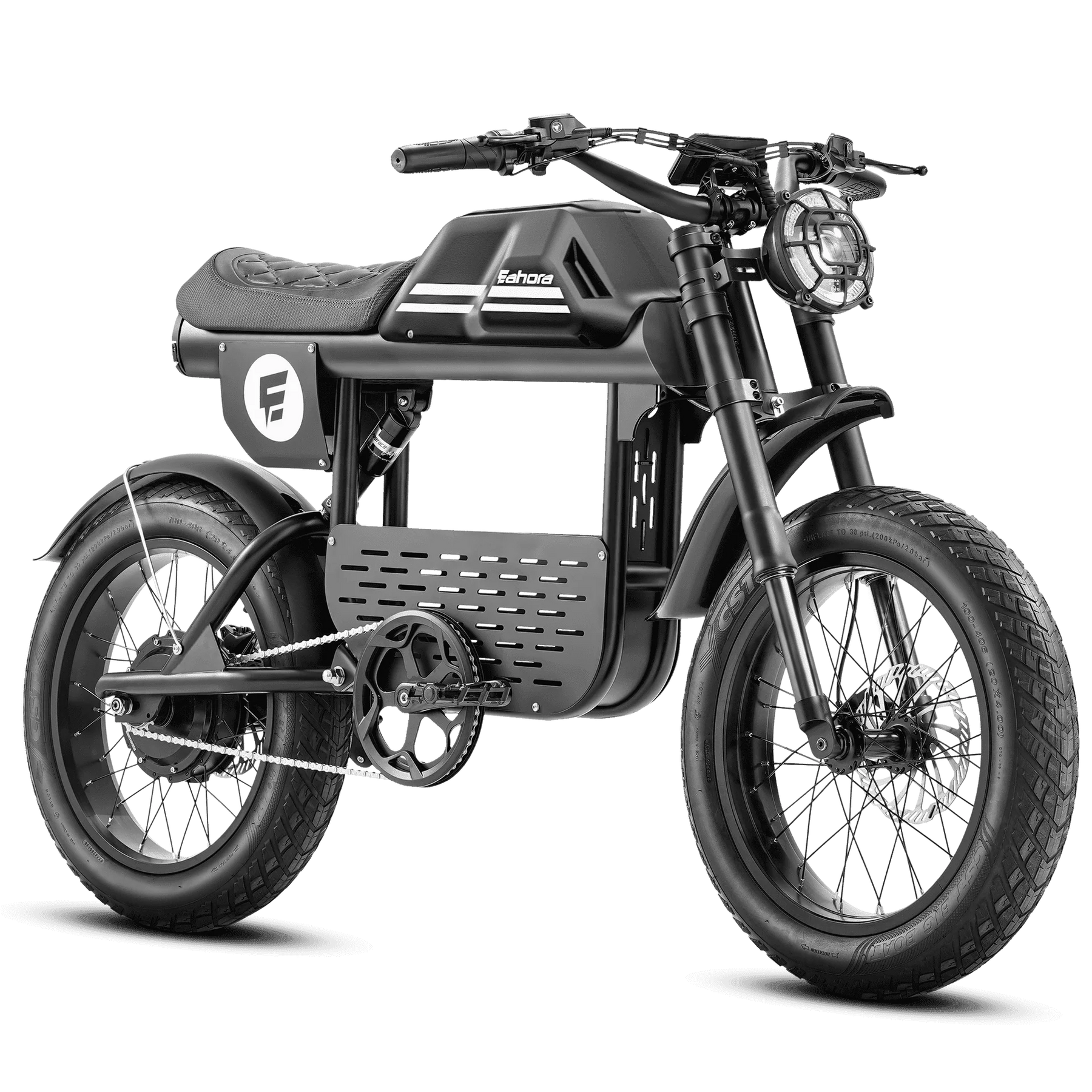

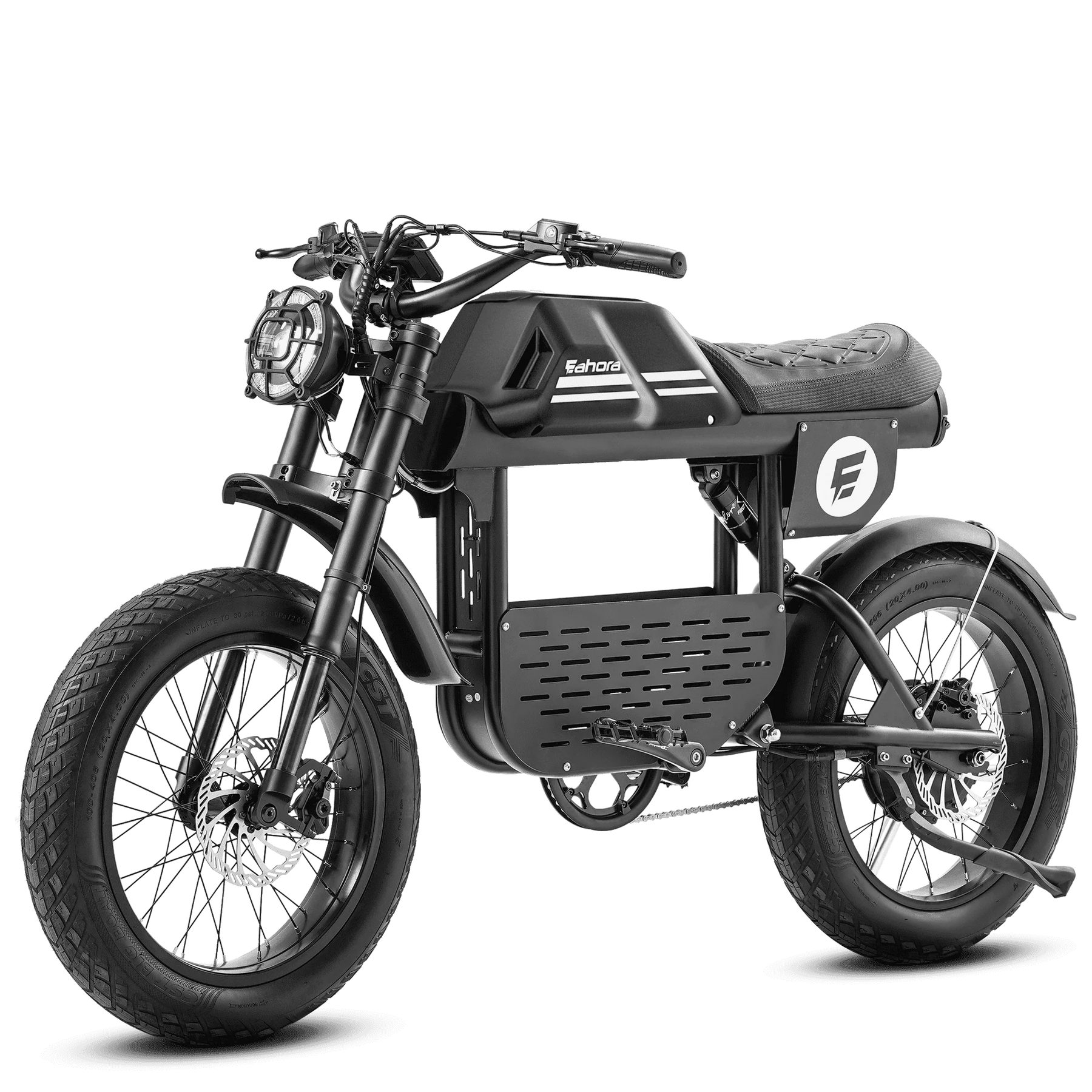

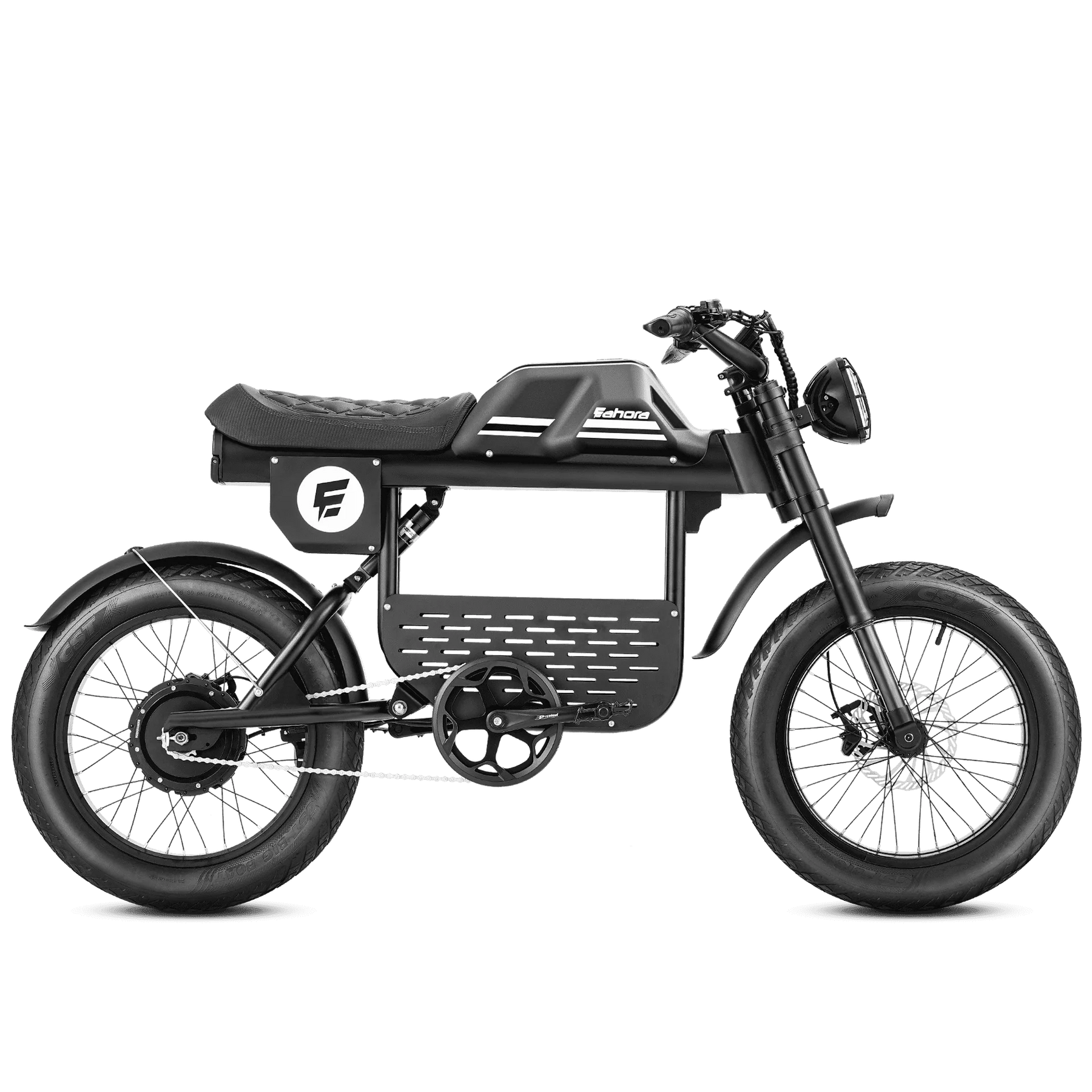

Eahora FT-01 Max
36V NAKED PACK DIMENSIONS
All sizes below include holders, insulation, heat-shrink, wiring, and side-mounted high-current BMS allowance.
| Config | Capacity (Ah) | Cell Count | Dimensions (L × W × H, in) | Dimensions (mm) | Max Continuous (A) | Notes |
|---|---|---|---|---|---|---|
| 10S3P | 15Ah | 30 | 8.9 × 2.8 × 3.3 | 226 × 71 × 85 | 100A | Compact commuter |
| 10S4P | 20Ah | 40 | 8.9 × 3.7 × 3.3 | 226 × 94 × 85 | 120A | Good range upgrade |
| 10S5P | 25Ah | 50 | 8.9 × 4.6 × 3.3 | 226 × 117 × 85 | 150A | Mid-capacity |
| 10S6P | 30Ah | 60 | 8.9 × 5.5 × 3.3 | 226 × 140 × 85 | 180A | Balanced build |
| 10S7P | 35Ah | 70 | 8.9 × 6.4 × 3.3 | 226 × 163 × 85 | 200A | High power |
| 10S8P | 40Ah | 80 | 8.9 × 7.3 × 3.3 | 226 × 186 × 85 | 220A | Fleet / commuter |
| 10S9P | 45Ah | 90 | 8.9 × 8.2 × 3.3 | 226 × 209 × 85 | 250A | Heavy duty |
| 10S10P | 50Ah | 100 | 8.9 × 9.1 × 3.3 | 226 × 232 × 85 | 300A | Max 36V build |
- Free worldwide shipping
- Low stock - 10 items left
- Backordered, shipping soon
Explore new frontiers with Eahora's FT-01 Max , a masterpiece of human-centric design. Experience the perfect blend of form and function with the FT-01, crafted with Eahora's passion for innovation. Made with high-quality materials, the FT-01 ensures durability and reliability, guaranteeing your adventures are worry-free. In-house designers engineered the frame for enhanced ergonomics, solid handling, and an ideal fit for riders at the bottom end of our height recommendation range.
Size & Geometry
Recommended Rider Height: 5'5" - 6'3" or 165CM - 190CM
Ⓐ - Total Length: 68.1" or 173CM
Ⓑ - Wheel Base: 45.3" or 115CM
Ⓒ - Seat Height: 33.5" or 85CM
Ⓓ - Handlebar Height: 45.3" or 115CM
Ⓔ - Rim Diameter: 16.4" or 42CM
Ⓕ - Standover: 27.2" or 69CM
Ⓖ - Reach Distance: 19.7" or 50CM
Ⓗ - Chain Stay Length: 19.7" or 50CM
Ⓚ - Bike Width: 29.5" or 75CM
Technical Specifications
*To ensure uninterrupted suppluying and shipping, some parts may differ from those listed.
Rest assured, our engineers rigorously test each component to guarantee quality and compatibility.
Basic
- Bike Class
- Class 3 ebike with 3-level pedal assist and throttle.
- Bike Weight
- 90.6 lbs in total with the battery. The battery weighs 13.1 lbs.
- Range per Charge
- 28 miles on throttle mode. 43 miles on pas mode.
- Payload Capacity
- Recomend rider weight within 330lbs.
Electronic System
- Motor
- 1500W DC hub motor, cassette.
- Battery
- 48V 30AH (1440 WH) lithium battery.
- Controller
- 48V 40 ± 1A; 12MOS.
- Charger
- 48V ~ 3A smart charger.
- Display
- 4" landscape color display(YL-90T-H), IP65 waterproof; brightness: 120CD/M2.
- Throttle
- Twist throttle
- Lights
- Front light with 48V 12W LED light, rear light with brake signal. driving-light.
- Wring
- Wiring harness with water-resistant connectors.
- Waterproof Rates
- IP65 Waterproof, including motor battery, display and wiring.
Bicycle Components
- Frame
- Alloy steel.
- Brakes
- 180MM front and rear hydraulic disc brakes.
- Brake Levers
- Aluminum alloy levers with motor cutoff switch.
- Tires
- 20" * 4.0" tires; tire pressure marked on sidewall.
- Fork
- 100MM travel mechanic suspension alloy fork.
- Rear Suspension
- Spring suspension.
- Chain
- T50 alloy steel rust-resistant chain; 112 segments.
- Crank Set
- 48T * 170MM, single-sided chainring guard.
- Grip
- Comfort rubber ergo grips.
- Handlebar
- Rise Handlebar.
- Pedals
- 9/16, polymer bearing.
- Headset
- Intergrated threadless headset.
- Rack
- None.
- Kickstand
- Aluminum alloy kickstand with plastic foot.
- Fenders
- Custom fat tire fenders, with bracket arm.
- Saddle
- Leather fabric, breathable, memory foam.
- Rims
- Aluminum 36H spoke wheel.
- Seatpost
- None.
- Bell
- Electric horn integrated into the headlight.
