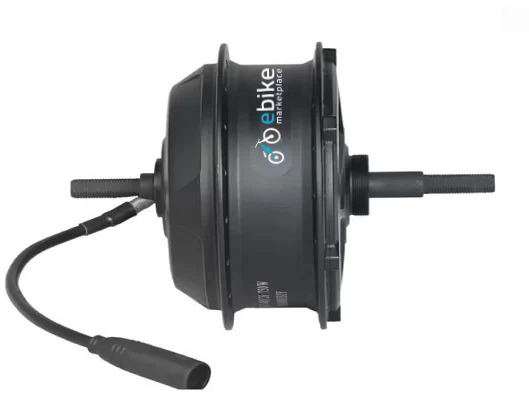

48 Volt D79-175KL Hub Motor Unit (eCargo + eFat)
- Description
- Information

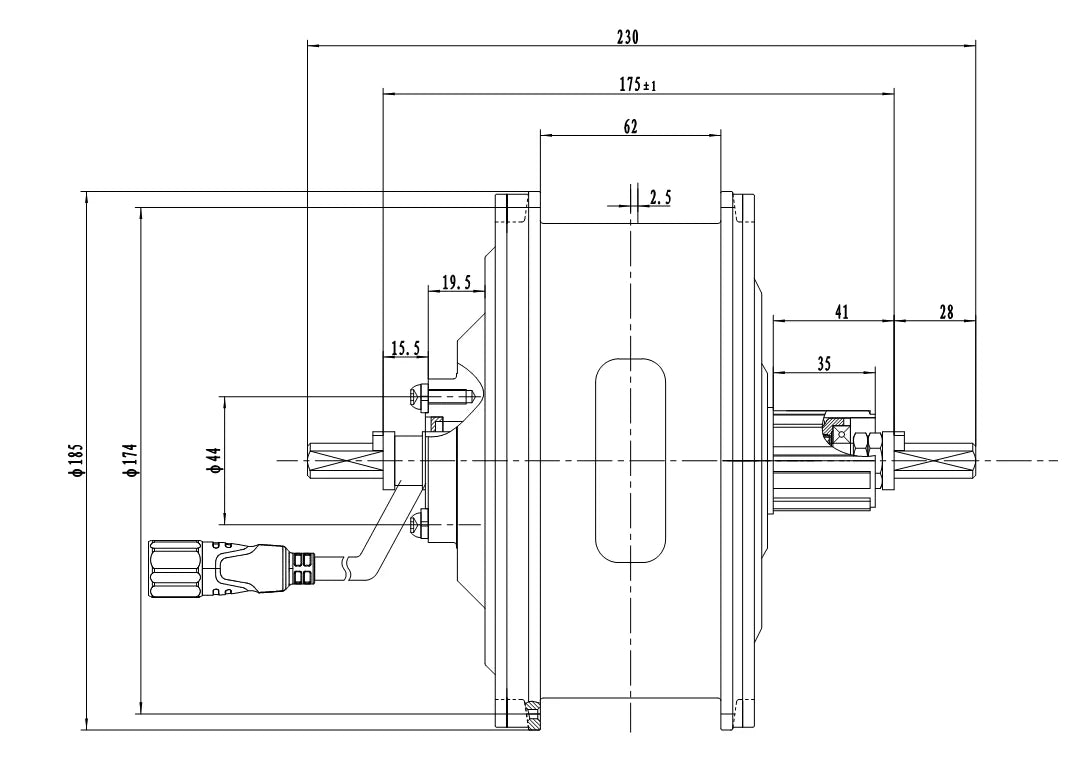

- Outline Drawing
WHY OPT FOR THE D79-175KL HUB MOTOR?
High Power Rear D79-175KL Hub Motor: Transform your e-bike into a powerhouse!
Designed for Fat Tires: Tailored for fat tire e-bikes, ensuring an extraordinary ride.
Customizable Power: Customize power from 1000W to an exhilarating 2000W, with a max torque of 110N.m! – control the road!
Rugged Durability: Made from rust-resistant aluminum alloys.
Lightweight & Low Maintenance: Enjoy durability with a featherweight design.
Whisper-Quiet: Silent, powerful, and quick to start.
Efficiency & Silence: Top efficiency, minimal noise, and rapid response.
Contact Us Now And Experience The Ride of a Lifetime!
ADDITIONAL INFORMATION
| D79 Series |
D79-175KL |
|---|---|
| Colour |
Black / Silver |
| Installation Site |
Rear |
| Applied for E-bikes |
e-FAT |
| Cable Routing |
Side-Left |
| Cable Length(mm) |
200 |
| Sprocket Wheel |
8～10 |
| Brake Style |
Disk-Brake |
| Spokes Holes |
36H |
| Spokes Size |
13G/12G |
| Spokes Central Dist.(mm) |
174 |
| Open Size(mm) |
175 |
| Wheel Size(inch) |
20/26/28/700C |
| Voltage(Vdc) |
48, 52, 60 |
| Rated Power(W) |
1000,1500,2000 |
| Max Speed(km/h) |
50, 55, 60 |
| Max Torque(N.m) |
110 |
| Reduction Ratio |
5.8:1 |
| Magnet Items(pcs) |
16 |
| Speed Sensor(pcs) |
1～6 |
| Efficiency(%) |
≥80 |
| Work Temperature(℃) |
-20～45 |
| Noise Items(dB) |
＜50 |
| Weight(kg) |
5.9 |
| Waterproof Level |
IP65 |
| Shells Material |
Aluminium Alloy |
