Bafang Wire Harness

$14.99

Type
Quantity
  • Product Description

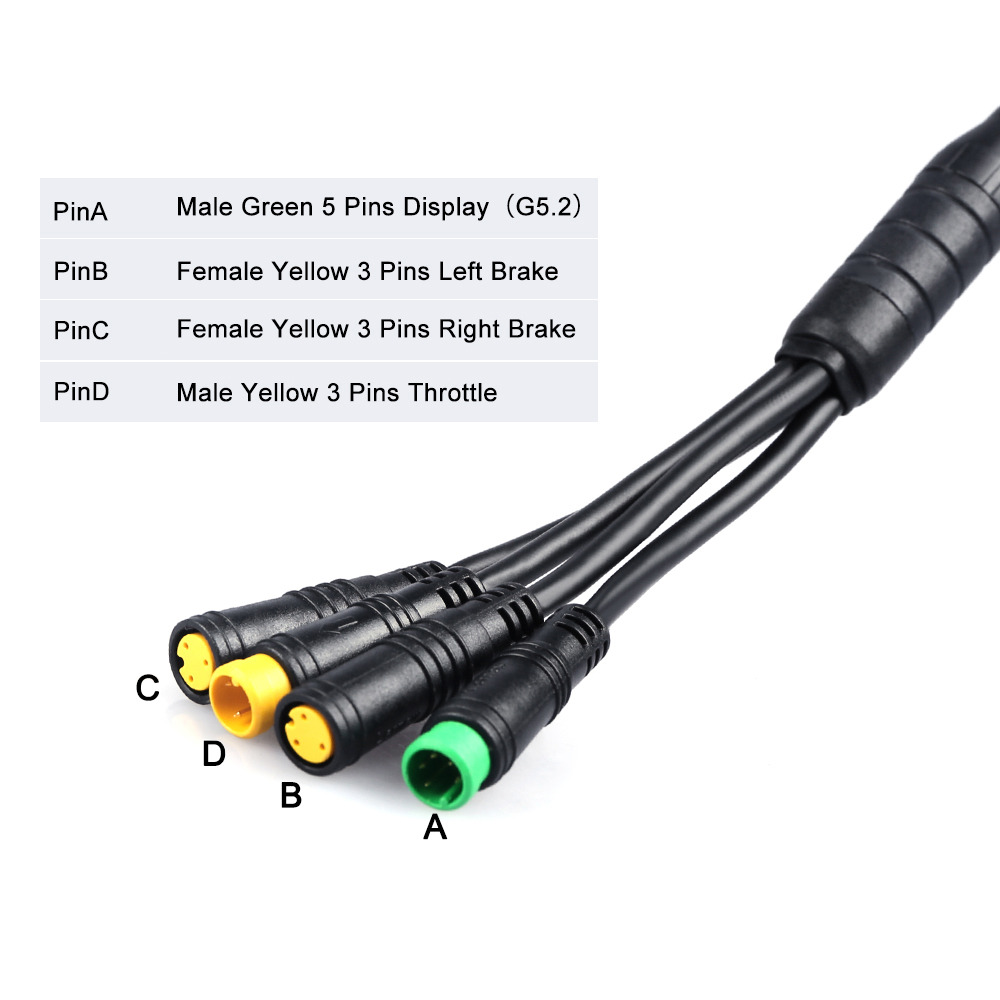

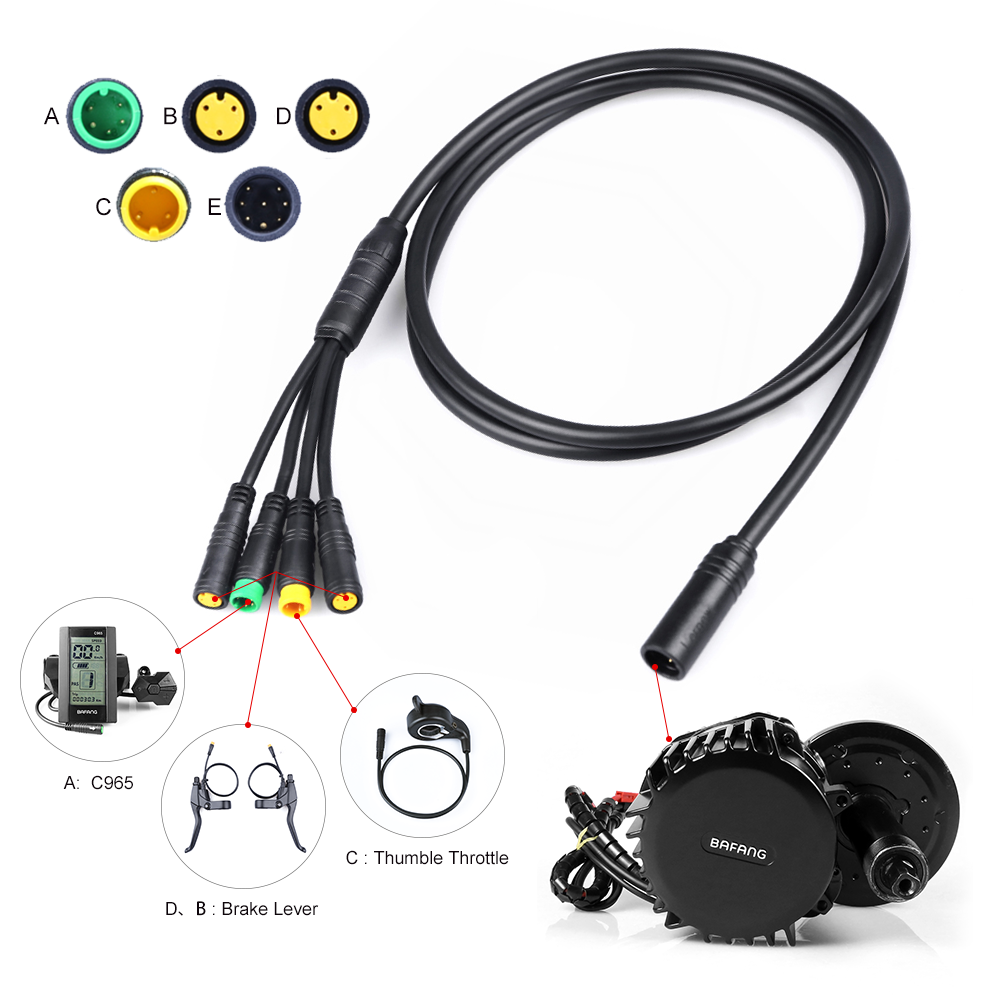

      Cable Connection:

      Pin A-Male Green 5 Pins Display(G5.2)
      Pin B-Female Yellow 3 Pins Left Brake
      Pin C-Female Yellow 3 Pins Right Brake
      Pin D-MaleYellow 3 Pins Throttle
      Pin E-Male 8 Pins(M8.4)Mid Motor Main Cable

      Core Data
      Suitability EB-BUS
      Wire Specification(AWG)24
      Operating Temperature-20 - 45℃

      Mounting Parameters
      Connector Size(mm)Max Ø 13*45
      Further Specifications
      Pin Surface TreatmentGold Plating
      Cables Available

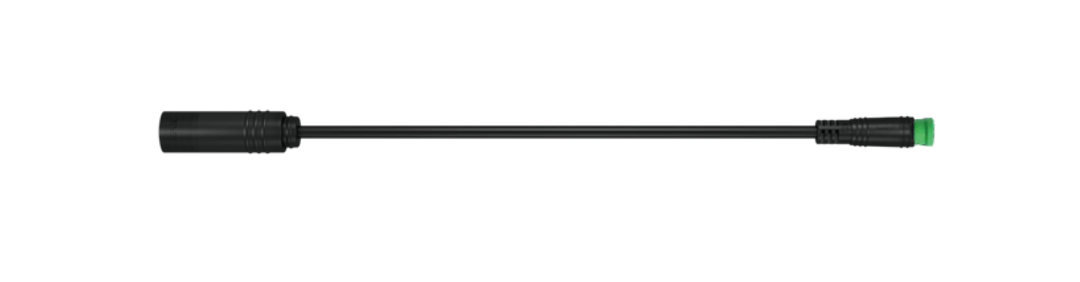

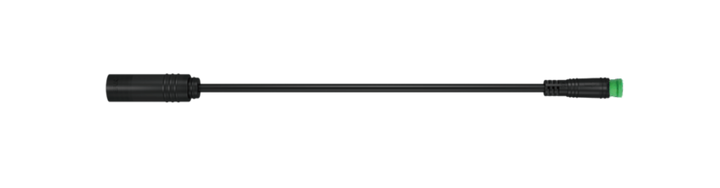

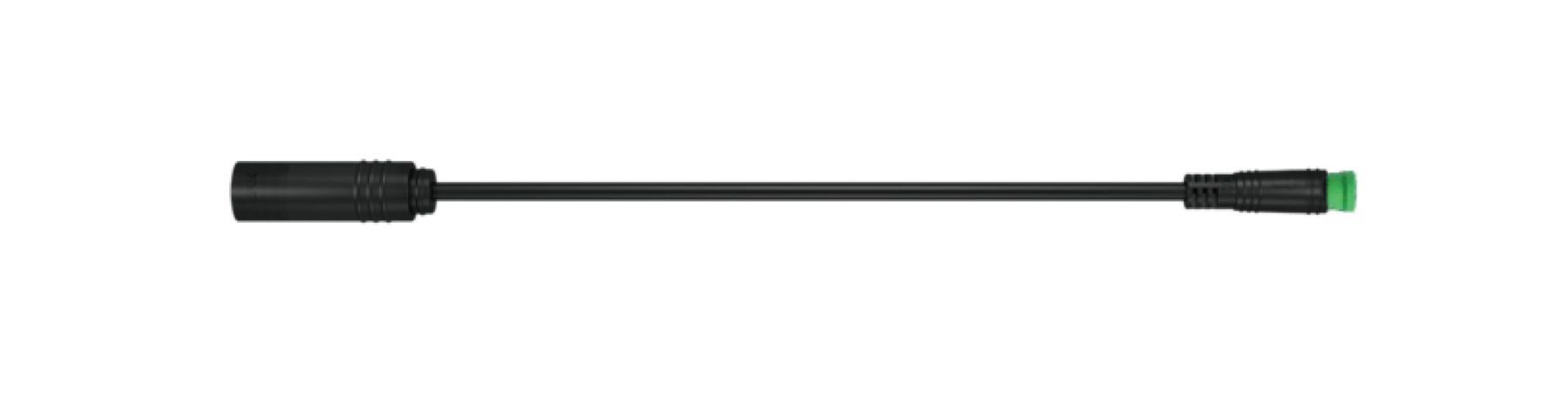

      • 1 - 1 Bafang motor cable directly to the Display cable this is used for professional only as it does not have connection for brake sensor or throttle.

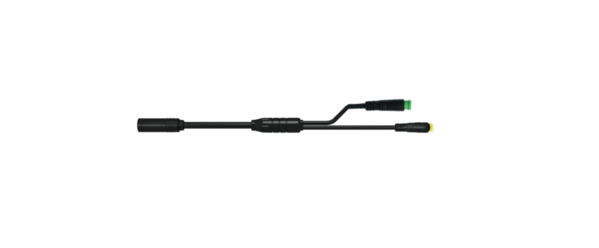

      • 1 - 2  Bafang motor cable That connects to display cable and throttle only  this is used for professional only as it does not have connection for brake sensor.

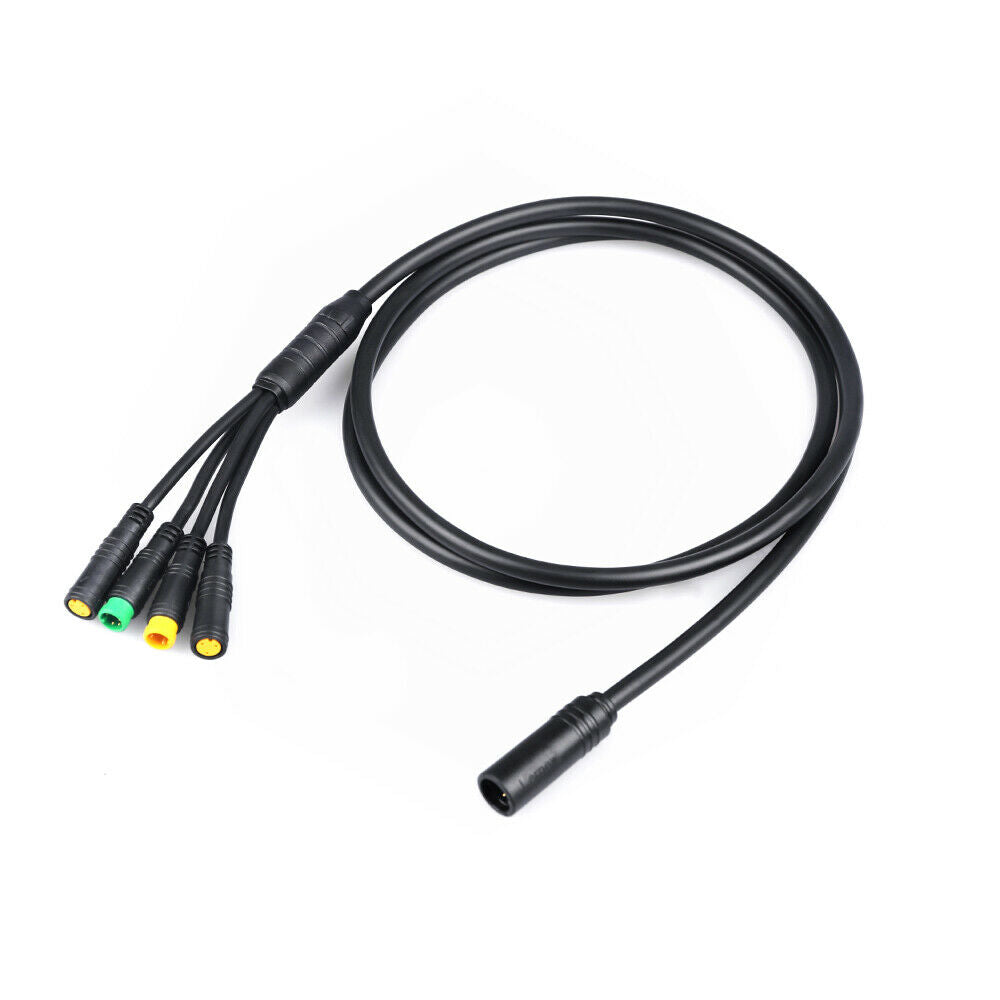

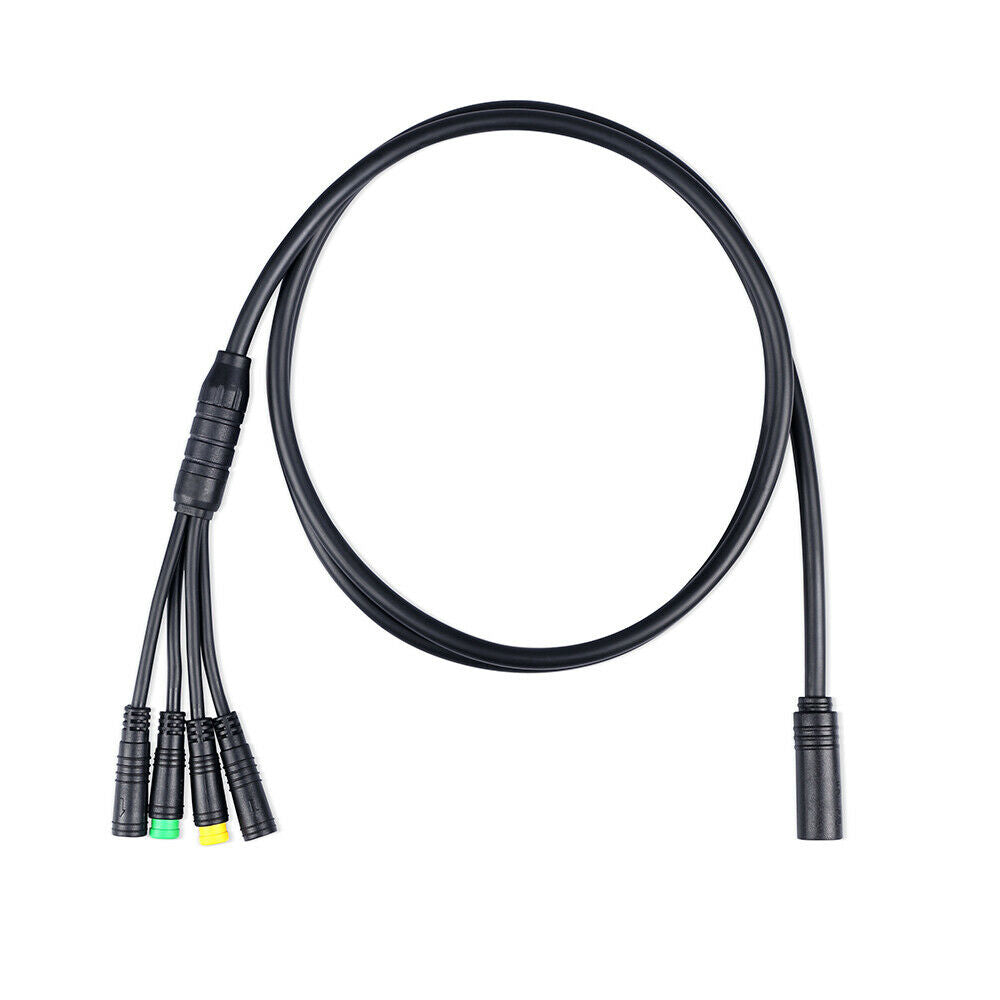

      • 1 - 4  Nomral Bafang Motor Cable that has all 4 connections

      Tests & Certifications
      IP-Code IP 65

      Certifications ROHS



      Package includes:

      1*1T4 Cable
