52V | 16Ah Lithium Ion Battery Pack

This EMP lithium battery pack is shrink wrapped with flame retardant fish paper inside to improve safety. We test each cell first before we build the battery pack to ensure the cells are properly balanced. We build every battery to order; nothing sits on the shelf here as we want to only send the freshest battery and we educate all our customer not to leave the battery sitting for a long time without charging as well. Check the video below to see what's inside of an EMP Battery.

Difference between 52V battery vs 48V Battery

52V battery if paired with a compatible motor will give you a bit more acceleration ( Torque ) . For example the bafang Mid drive motor 48V has a voltage range of 40V to 58V which most 52V batteries are 14S which means 4.2 x 14S is 58.8V so a 52V battery will work for a 48V motor for Bafang. When this is paired together it will be slightly more powerful and will give you more acceleration vs a 48V battery.

Having a high steady voltage is great for you motor output so using a 52V battery system will make you motor run more effectively over the course of time if you are looking to draw more power from the motor. 48V batteries will over time start to drop in voltage over time and so will a 52V battery so having a 52V battery over time will be just like owning a 48V battery once the voltage starts to sag a bit but this can be avoided by having a good BMS with passive or active balancing.

Battery Specifications

• Nominal Capacity 16Ah
• Nominal Voltage 52v
• Can be built with either 18650 or 21700 cells (Application-based)
• Max. charge voltage 58.8v
• Max. discharge voltage 39.5v
• Max Input Current 5 amps
• Cycle life 500 times
• Weight 14 lbs
• Max Discharge Current Continuous 40 Amps
• Max Discharge Current Peak 80 Amps
• Operating Temperate Range Charge 0˚C ~ 45˚C
• Operating Temperate Range Discharge-20˚C ~ 60˚C
• Storage Temperate Range (Long Term Storage 3 months)-10˚C ~ 45˚C (23˚C )
• 1 Year Warranty

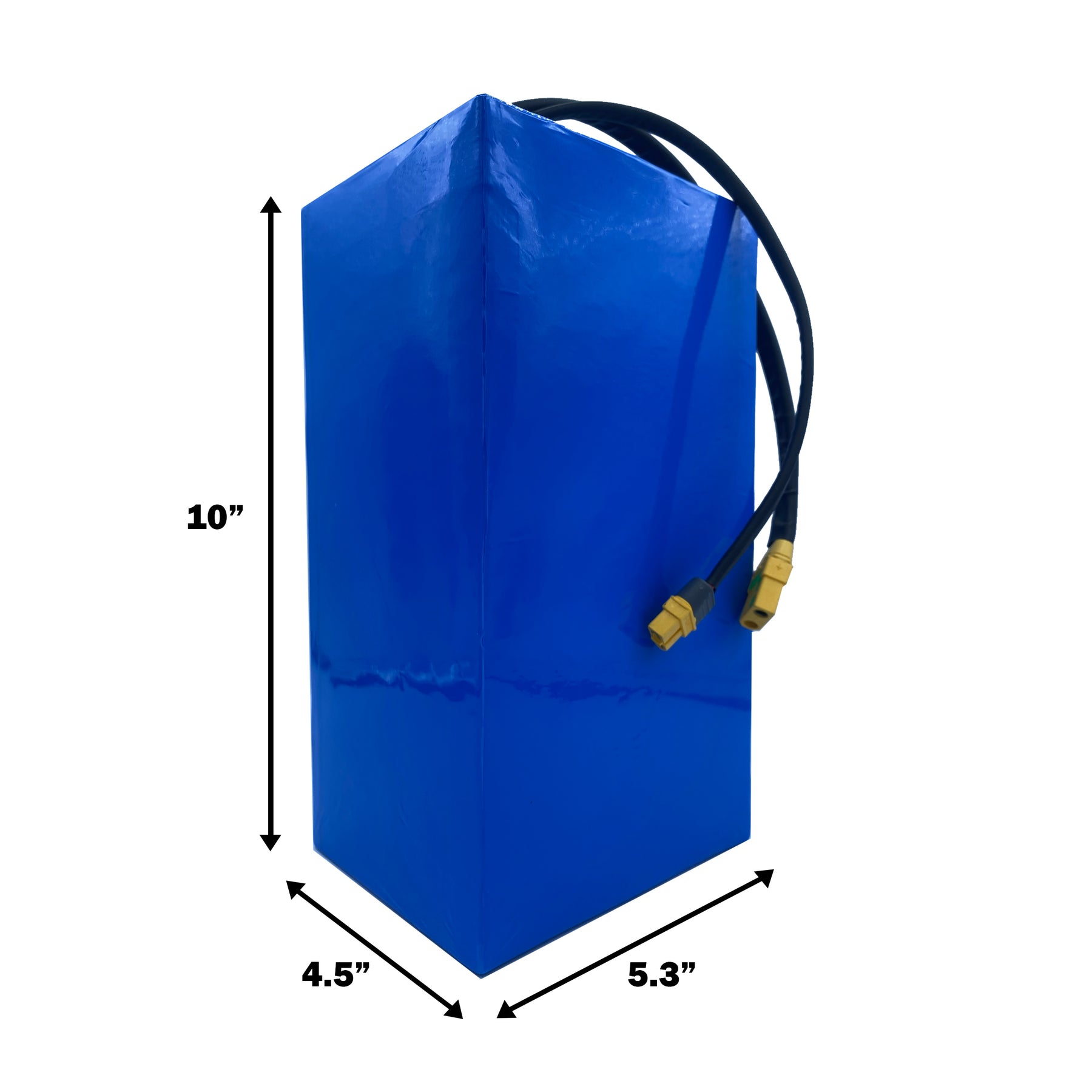

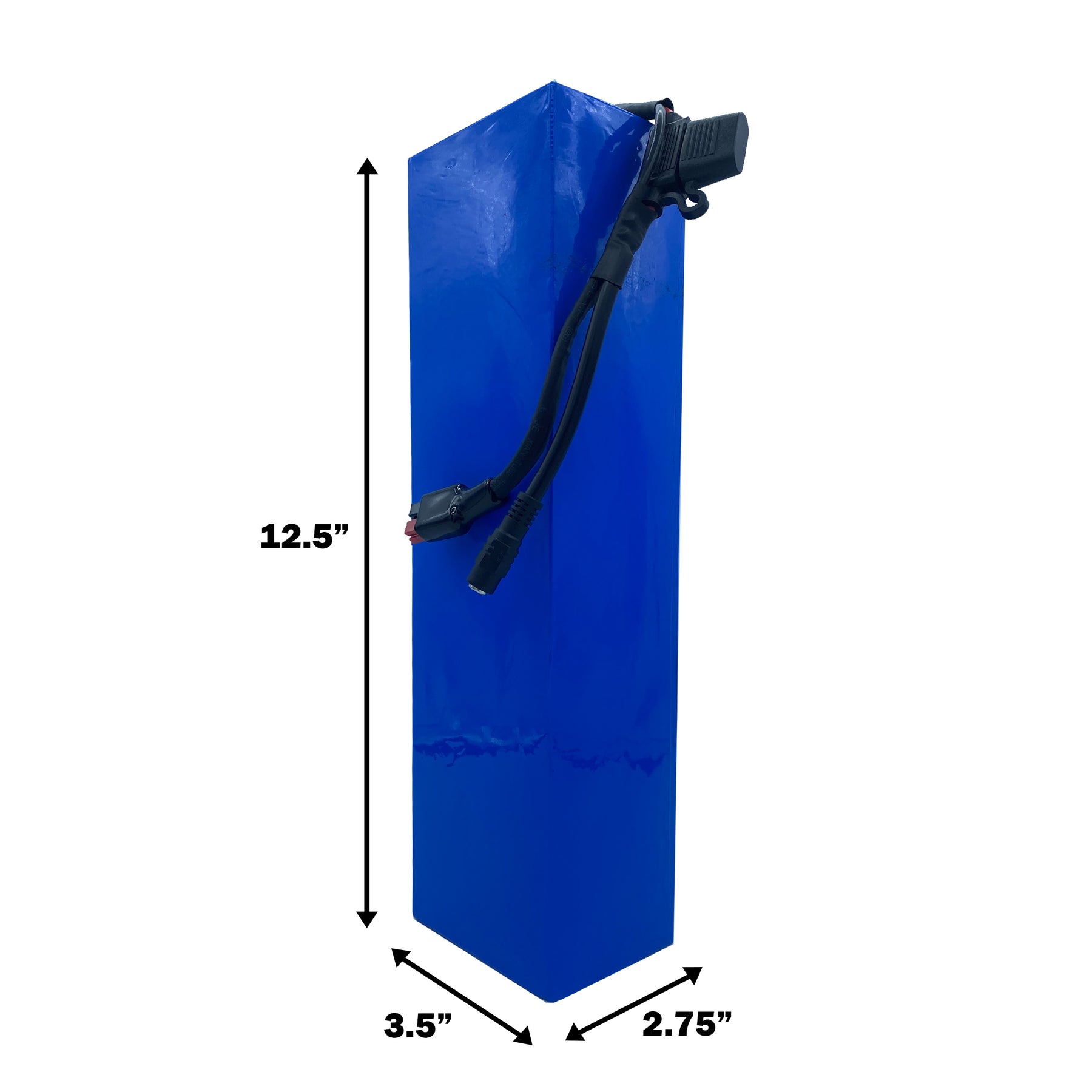

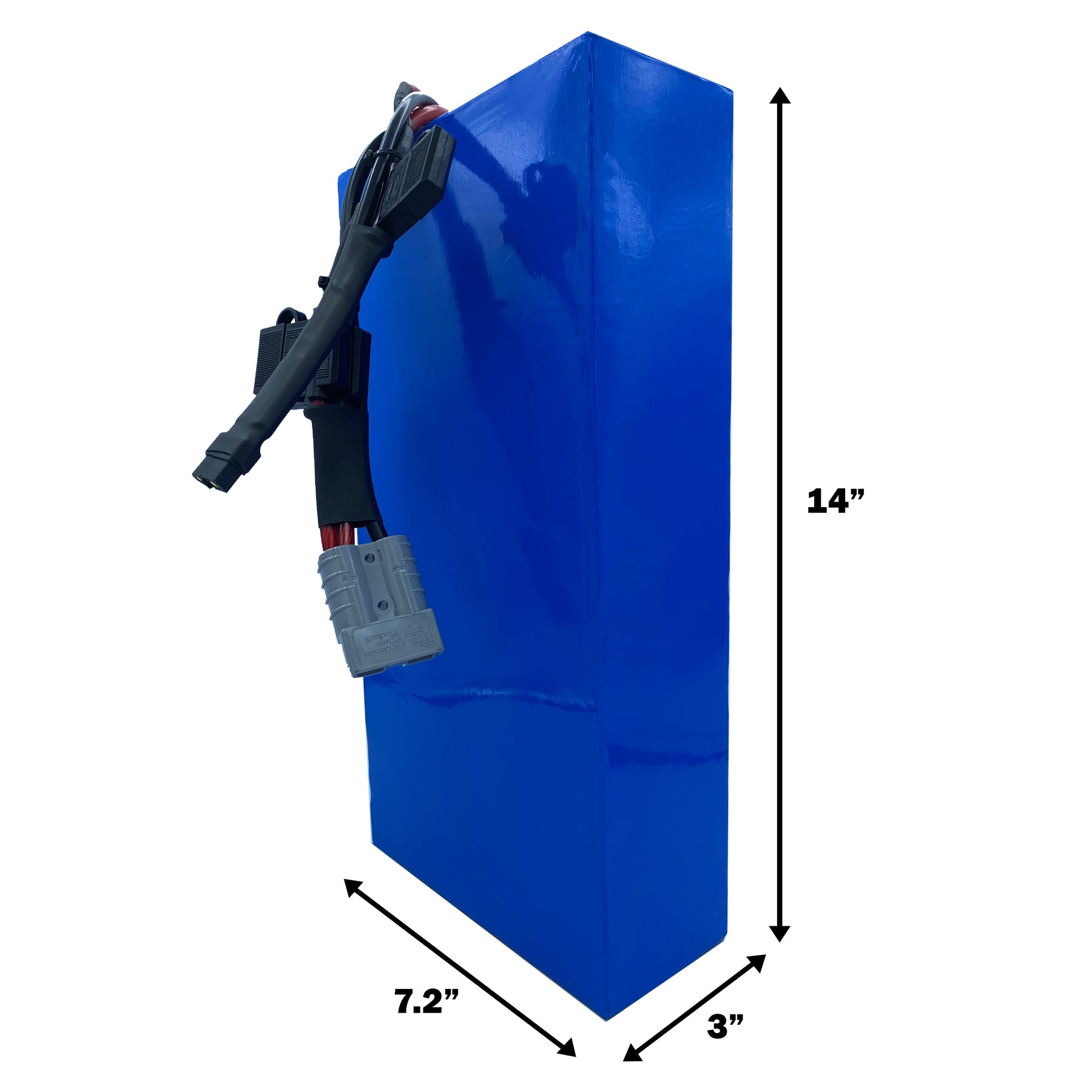

Battery Pack Dimensions

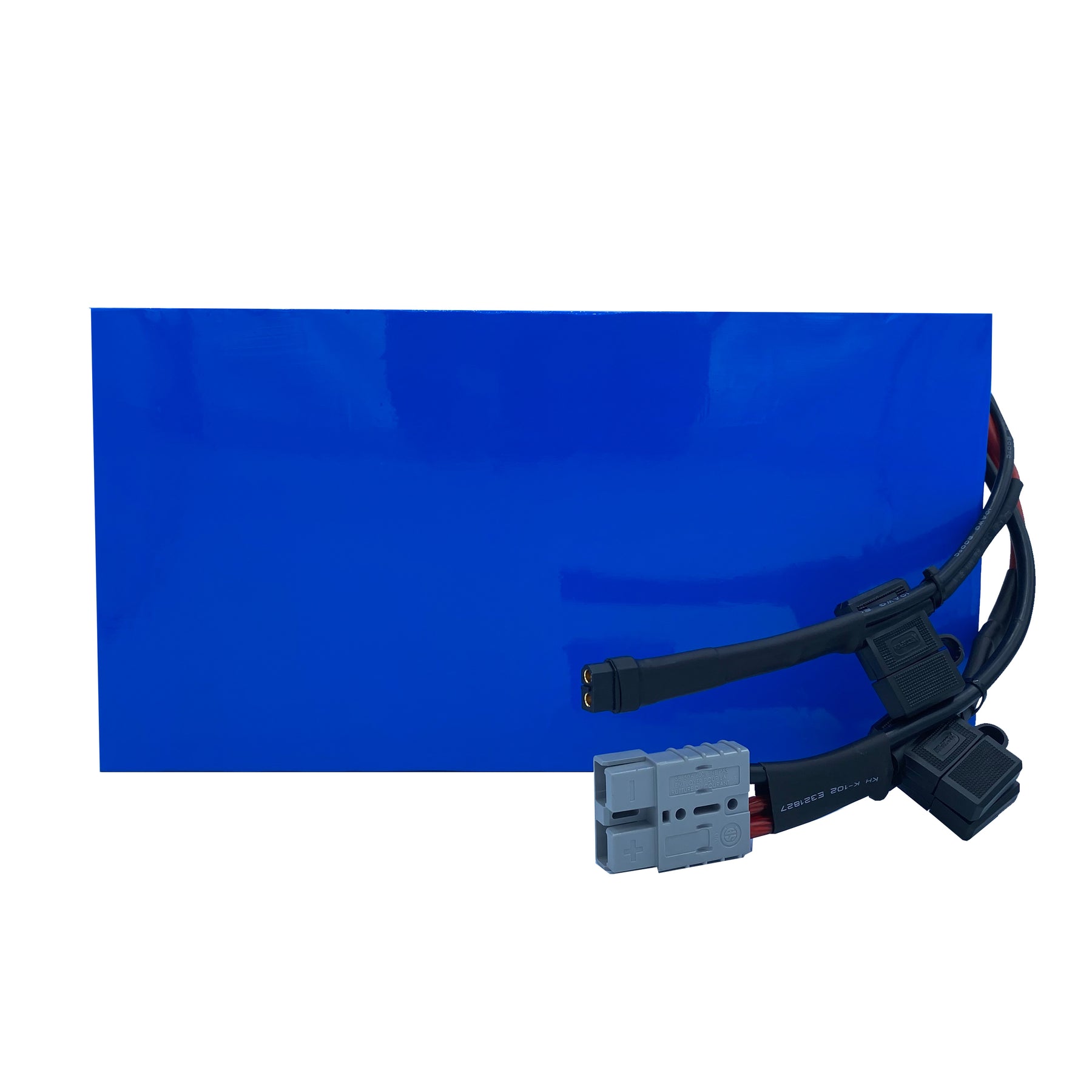

Battery Pack Dimension can be custom made depending on the application. Battery will come with Anderson connectors only which you can use for charge and discharge. We can customize the battery with any connector of you choice please just call in to confirm at 888-456-9410.

Battery is a great size and can travel for around 20 - 25 miles distance on a single charge.

Battery Size

• Length - 13 inches
• Width - 4 inches
• Height 3.5 inches
